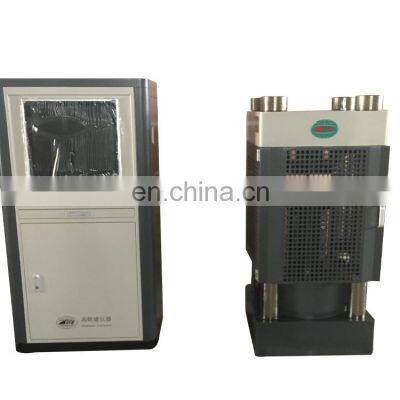

HYE-3000 Automatic Compression Testing Machines for Cube and Cylinders

Product Description

Product Description
Product Usage and FeaturesHYE-3000 Microcomputer Servo Compression Testing MachineUSAGE OVERVIEW:HYE series of test machines are hydraulically powered, using electro-hydraulic servo control technology to test the mechanical properties of compression of rock, mortar, brick, concrete and other building materials. It shows the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed. PRODUCT FEATURE:1. Siemens motors, stable torque and speed.2. Built-in radial plunger pump, stable output and low noise.3. Automatic servo measurement and control system, the data is accurate and reliable.APPLICATION STANDARDGBT、ISO、ASTM、DIN、JIS etc.ParametersModelHYE-2000HYE-3000NameDigital compression testing machineDigital compression testing machineMax. Test Force (KN)2000 KN3000 KNTest accuracyLevel 1Level 1Space adjustment methodManual pad adjustmentManual screw adjustmentPiston Strock (mm)80 mm80 mmPlatens Max. Distance400mm410mmUpper platen size (mm)Ф225Ф295Lower platen size (mm)Ф295Ф295Power0.75 KW1.1 KWMachine weight(kg)9201100Product DetailsControl Canbinet It shows the loading force value, loading speed and loading curve. The test data is automatically processed, stored, and printed.Touch screen equiped with pencil make your test process a enjoyable experience.ApplicationCompany informationCangzhou Lovely Technology Co., Ltd Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years. With advanced technologies and best customer service, our product has exported to over 100 countries and regions, which win favorable comments from customers worldwide.Our equipment is used throughout the world for testing soil, concrete, cement, asphalt and aggregate materials. This testing involves evaluations of materials, which are used in construction projects ranging from roads, bridges and tunnels to dams, earthworks, airports, railways, etc.We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.Our Customers and patent certificateOur Services1. Get our in-time reply via email or telephone or instant messenge. Our product specialist will guide you find the suitable product according to your requirement;2. Get best product with excellent quality and competitive price;3. One year guarantee for whole machine and in time technical support by video or email. Always enjoy our considerable & full-side after-sales service;4. Feeling very convenient since we can help you source and ship products from different factories via one shipment, which is significant to save your time and cost;5. Easily make the payment via West Union, Paypal, Credit Card for small value order;Packing & Delivery
