Vertical Spindle Surface Grinding Machine with Rotary Table Vsg-320b Surface Grinder Machine

Vertical Spindle Surface Grinding Machine with Rotary Table Vsg-320b Surface Grinder Machine

US$12,000.00
1-2 Sets
US$9,900.00
3+ Sets

Basic Info.

Model NO.
VSG-320B
Type
Surface Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Grinding Size
320X100 mm
Worktable Rotary Diameter
320 mm
Distance From Table Center to Grinding H
0-60 mm
Max. Distance From Lower End Surface of
80 mm
Worktable Speed
46 R/Min
Wheelhead Spindle Speed
4200 R/Min
Grinding Head Adjust Angle
±5°
Grinding Wheel Size
150X70X32 mm
Max. Weight of Workpiece
40 Kg
Wheel Head Motor Power
3 Kw
Worktable Rotary Motor
0.25 Kw
Color
as Coustomer′s Reuqired
Voltage
as Coustomer′s Reuqired
Transport Package
Wooden Box
Trademark
TIMEWAY
Origin
China
Production Capacity
500sets/Year

Product Description

Product Description

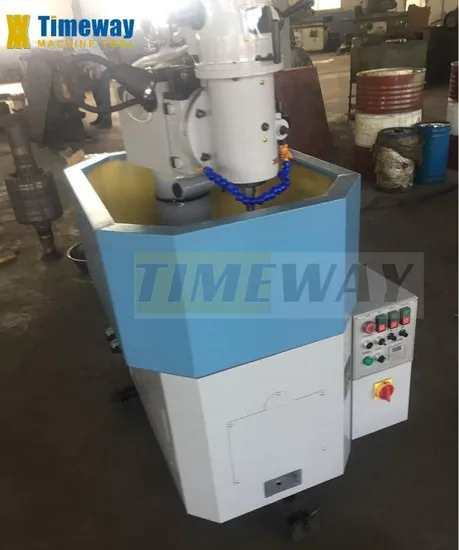

Vertical Spindle Rotary Surface Grinding Machine
The surface grinding machine with vertical spindle and round table is to grind the end face of grinding wheel, is a high efficiency, precise and stable machine tool.
The series of machine have made greater improvement on bed and grinding head rigidity; increase one set of electronic oil pumping system each for bottom guide rail and upright post guide rail of work bench, can pump oil automatically and oil volume is adjustable. Upright post adopts three-point adjustment, compace structure, work bench is round powerful electromagnetic chuck, magnetic froce is uniform, precision is stable, power is big, electronic magnetizing and demagetizing, and equips with coolant purification device.
The series of machine are mainly used for grinding blank and general precise large parts ,surface roughness reaches above 0.8, and parallelism is within 0.02/1000mm. Therefore, it is espacially suitable for grinding of large parts in metallurgy, saw balde, automobile, tractor, tools, bearing and other industries.
SPECIFICATION UNIT VSG-320B
Max. grinding size mm 320x100
Worktable rotary dia. mm 320
Distance from table center to grinding head center mm 0-60
Max. distance from lower end surface of wheel to table mm
80
Worktable speed r/min 46
Wheelhead spindle speed r/min 4200
Grinding head adjust angle ° ±5
Grinding wheel size mm 150x70x32
Max. weight of workpiece kg 40
Wheel head motor power kw 3
Worktable rotary motor kw 0.25
Coolant motor kw 0.06
Total motor power kw 4.6
Machine weight kg 880
Packing size(LxWxH) mm 1000x1050x1620


One-stop Shopping
Please click on the picture to view the product category you are interested in
Conventional Lathe CNC Lathe
CNC Machining Center
CNC Milling Machine
Grinding Machine Milling Machine
Special Use Lathe Boring Machine

Our Advantages
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Packaging & Shipping
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
Customer visited
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
The following is one of the most satisfactory products recommended by customers, as well as our main product categories. you can click and view

FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
