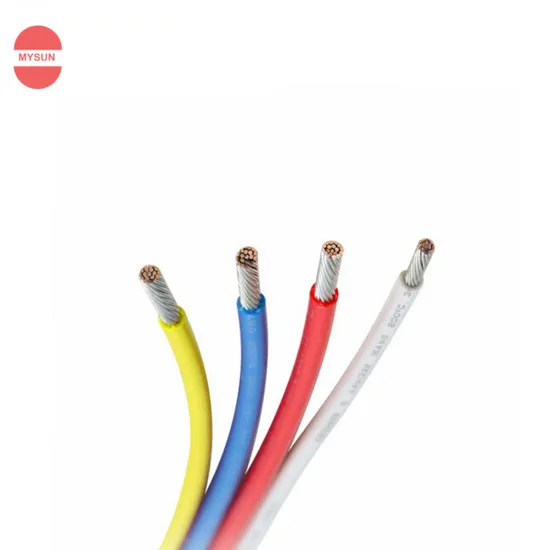

VDE H05ss-F 300/500V 180c 2*0.75mm 2*1.5mm 2*2.5mm Voltage Fiberglass Braided Wire Stranded Temperature Electrical Cable Double Core
| US$0.01 | 305 Meters (MOQ) |
Basic Info.
Application
Overhead, Heating, Underground
Conductor Material
Copper
Sheath Material
Silicone Rubber
Insulation Material
Silicone Rubber
Material Shape
Round Wire
Range of Application
Home Appliance
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Mysun
Transport Package
305m/Roll
Specification
2*0.75mm 2*1.5mm 2*2.5mm
Trademark
Mysun
Origin
China
HS Code
8544492900
Production Capacity
300000
Product Description
Specification:Certificate :ROHS, CCC,UL ,CUL ,VDE,CE
GB/T19001, ISO9001
Rated temperature:180 C
Rated voltage300/500V
Conductor :solid or stranded wire (10AWG) of tin-plated or bare copper wire .
Insulator:silicone Rubber
Braided material:Silicone rubber
Color ::red \blue \white \yellow \green \brown \black
Application areas:Insulated protective wire of Electronic Appliances,lighting equipments, Industrial Machinery and heated products.
We can make all kinds of special specification silicone wires and braided silicone wires to customer's order
| VDE H05SS-F | |||||||
| (Conductor) | Insulation | Outer diameter (mm) | Max.Cond Resistance (Ω/KM) | Unit Length (M)/(Ft) | |||
Size (AWG) | / Construction (No./mm) | Diameter (mm) | Core (mm) | Jacket (mm) | |||
| 2*0.75 | 24/0.20 | 1.13 | 0.6 | 0.8 | 5.7-7.4 | 26.7 | 100/328 |
| 2*1.00 | 32/0.20 | 1.13 | 0.6 | 0.9 | 6.1-8 | 20 | |
| 2*1.50 | 30/0.254 | 1.6 | 0.8 | 1 | 7.6-9.6 | 13.7 | |
| 2*2.50 | 50/0.254 | 2.08 | 0.9 | 1.1 | 9-11.6 | 7.16 | |
| 3*0.75 | 24/0.20 | 1.13 | 0.6 | 0.8 | 6.2-8.1 | 26.7 | |
| 3*1.00 | 32/0.20 | 1.13 | 0.6 | 0.9 | 6.5-8.5 | 20 | |
| 3*1.05 | 30/0.254 | 1.6 | 0.8 | 1 | 8.0-10.4 | 13.7 | |
| 3*2.50 | 50/0.254 | 2.08 | 0.9 | 1.1 | 9.6-12.4 | 7.16 | |
| 4*0.75 | 24/0.20 | 1.13 | 0.6 | 0.8 | 6.8-8.8 | 26.7 | |
| 4*1.00 | 32/0.20 | 1.13 | 0.6 | 0.9 | 7.1-9.3 | 20 | |
| 4*1.50 | 30/0.254 | 1.6 | 0.8 | 1 | 9.0-11.6 | 13.7 | |
| 4*2.50 | 50/0.254 | 2.04 | 0.9 | 1.2 | 10.7-13.8 | 7.16 | |
