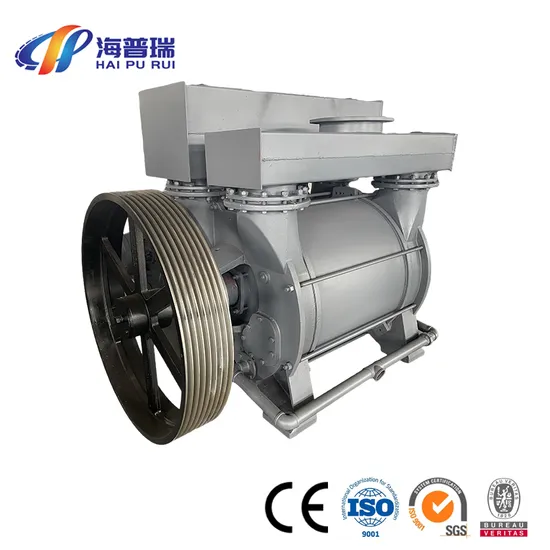

2bec with High Vacuum Dewatering in Papermaking Water Ring Vacuum Pump

Product Description

Shenyang Haipurui Vacuum Technology Co.,ltd.
=======================================
Vacuum Pump--water ring vacuum pump
OVERVIEW
Water ring vacuum pump is suitable for pumping gas and water vapor, the ultimate pressure can reach absolute pressure 3300pa (97% vacuum).
The working fluid of the 2BV series can be recycled using the pumped medium (liquid) to form a closed cycle system, thus achieving zero emissions and solvent recovery.
When the pump is working for a long time under the suction pressure close to the ultimate vacuum (the saturated vapor pressure of the working liquid), the cavitation protection pipe should be connected to protect the pump.
When the pump is used as a compressor, its outlet pressure can be up to 0.26Mpa (absolute pressure).
2BV2-EX, 2BV6 series water ring vacuum pumps and compressors are mainly used for pumping explosive gases, and used in various flammable and explosive environments, and its performance parameters are exactly the same as 2BV2, 2BV5 series.
Parameter
Transmission mode: direct connection, belt or reducer, air extraction rate of 80.8-1030m ³/min, power of 110Kw-1520Kw

Model	Extreme pressure hPa	Max gas capacity m3/min	Speed r/min	Transmission mode	Max shaft power Kw	Motor Kw	Working fluid flow rate m3/h	Suction and exhaust diameter mm	Pump weight Kg
2BEC 40	160	80	340	Belt or gearbox	80	90	9.9	300	2930
		95	390		95	110
		110	449		115	132
		115	490		134	160
		124	530		148	185
		133	570		167	200
		143	610		189	220
2BEC 42	160	120	360	Belt or gearbox	110	132	13.5	300	3360
		127	390		132	160
		142	440		157	185
		156	490		180	200
		169	530		204	220
		178	570		229	250
		193	610		260	315
2BEC 50	160	145	260	Belt or gearbox	142	160	18.3	350	5440
		169	300		171	200
		190	340		203	250
		212	380		238	280
		230	420		277	315
		258	470		338	400
2BEC 52	160	178	260	Belt or gearbox	172	200	22.2	350	6000
		205	300		210	250
		233	340		245	280
		257	380		288	315
		280	420		337	400
		312	470		412	500
2BEC 60	160	211	230	gearbox	205	250	25.4	400	8200
		240	260		243	280
		266	290		285	315
		291	320		322	355
		316	350		365	450
		360	400		465	560
2BEC 62	160	260	230	gearbox	250	280	30.9	400	9100
		295	260		300	355
		325	290		340	400
		355	320		390	450
		386	350		450	500
		436	400		570	630

Model	Extreme pressure hPa	Max gas capacity m3/min	Speed r/min	Transmission mode	Max shaft power Kw	Motor Kw	Working fluid flow rate m3/h	Suction and exhaust diameter mm	Pump weight Kg
2BEC 67	160	305	210	gearbox	280	315	36.4	500	11390
		340	240		350	400
		386	270		415	450
		425	300		465	560
		462	330		545	630
		516	370		670	800
2BEC 72	160	365	190	gearbox	345	400	43.5	500	14150
		405	210		395	450
		458	240		475	560
		509	270		550	630
		563	300		642	710
		635	340		795	900
2BEC 80	160	540	210	gearbox	515	560	55	600	18500
		580	225		590	630
		620	240		670	710
		660	255		750	800
		700	270		840	900
		750	290		930	1000
2BEC100	160	800	155	gearbox	730	800	80	700	31000
		855	165		840	900
		905	175		900	1000
		990	190		1000	1120
		1030	200		1140	1250

Main feature
--Due to the use of impeller and shaft hot fit interference fit in this series of pumps, the shaft and bearings,The safety factor is high, therefore it has considerable reliability and operates smoothly with low Noise.
--Due to the inspection holes provided on the end cover of the pump, it is easy to view the internal structure and replace the suction and exhaust valve plates without dismantling the pump. In addition, the replacement of the packing can also be carried out without dismantling the pump cover, which is very convenient.
--This series of pumps adopts system optimization design and a flexible exhaust valve design to avoid over compression in gas compression. By automatically adjusting the exhaust area, energy consumption is reduced, ultimately achieving optimal operating efficiency.
--The maximum gas extraction capacity of the product can reach 1030m ³/min, which is particularly suitable for process selection with high extraction speeds.
Material select
According to different medium liquids, normally 304,316,2204,2507,titanium.
More pictures
For other details ,pls send us email .
Pls send pump data sheet for quotation.
More products Exhibition
Factory
=============================================================
Shenyang Heprui Vacuum Technology Co., Ltd. is a high-tech enterprise dedicated to the research and development, design, manufacturing, sales, and service of vacuum pumps and complete vacuum equipment. The company has experienced vacuum technicians and absorbs vacuum technology to continuously develop and improve product design and application, providing good solutions to meet vacuum applications in various industries. Our company has passed the ISO9001 quality management system certification and has successively obtained twelve patents and three software copyrights, striving to break through and improve our research and development level. Our products are widely used in industries such as petrochemicals, pharmaceuticals, hospitals, electronics, new materials, aerospace, printing, packaging, papermaking, automation, etc. Hepuri's strong technical strength and comprehensive, high-quality services help customers and partners achieve maximum success.
The company's products mainly have two categories. One is vacuum acquisition equipment, namely vacuum pumps, including 2BV, 2BE, SK, 2SK series liquid ring vacuum pumps and compressors, SY, 2SY series liquid ring compressors, and XD series single-stage rotary vane vacuum pumps; The second category is vacuum application products, including the 2BW series liquid ring vacuum pump closed cycle system, JZJ series Roots vacuum pump unit, and ZF series central vacuum system.
Among them, vacuum application products use vacuum acquisition equipment as the vacuum host (vacuum source), equipped with gas-liquid separators, vacuum buffer tanks, heat exchangers, pressure transmitters, temperature transmitters, liquid level transmitters, replenishment solenoid valves, inlet pneumatic valves, cavitation protection devices, working fluid flow meters, intake filters, etc., which can monitor various control points in real time. And it can be configured with PLC, human-machine interface touch screen, etc. to automatically open pumps, valves, etc. according to user processes, record various parameters and real-time operating status, and achieve true process automation.
Parts of patent certificate we got
FAQ
1.Are you a factory or trading company?We are a factory and we have professional team of workers,Designers and inspectors.2.Do you accept custom?Of course.We have professional teams who make your designs,photos,imagines and OEM orders into real production.3.What's your shipping terms?If you need to ship by air,we can use DHL,UPS,FedEx,TNT or EMS.If you need to ship by sea,we have many good forwarders to work with,they can provide the best price for you.
4.Whats your payment terms?
Until now , we can accept TT.LC.West union.
5.What information do you need to offer a quotation?
Pump Capacity: m³/h or L/S
Voltage: V
Frequency: Hz
If you have full data sheet,pls send to us also.
