Full Powder Coating Plant Semi Automatic Powder Painting Line

Product Description

Full Powder Coating Plant Semi Automatic Powder Painting Line

Powder coating line type	Semi-atuo
Powder coating booth type	With mono-cyclone+after filter unit powder recycle system,ideal for quick color changes
Powder coating oven	oven with the trolley type
Automatic powder coating systems	Automatic powder coating guns, reciprocators, powder supply center

Product Details
Fast Color Change Powder Coating Cyclone Booth / Material could be SS or PP
The automatic powder coating booth equipment is a key part of high efficiency powder coating line system. It is not only setup for simple spraying but also comes with two step powder recovery system that is cyclone and after filter recovery units, to achieve fast color change and realize 98% powder recovery. A solution for high powder coating output capacity and clean coating condition.
1. Mono cyclone achieves recycling efficiency up to 98%, a great saving of powders. a quick cleaning takes around 15 minutes. 2.The secondary recovery stage is combined with a group of high precision filters effectively capture ultra fine powders,thus only particle-free air discharged outside.
3. There's air clean system continuously transports over sprayed powder from the booth
floor, quickly recycling it back to the powder feed container.
4. Booth material can be made anti-static engineering plastic,which reduces powder waste. Also can be stainless steel ,longer life time.
Automatic Powder Coating Systems
COLO-2000D reciprocator with COLO-800 automatic powder coating gun is a perfect set for automatic powder coating , the failure rate is low, frequent maintenance is not required, the service life is long, and the spraying quality is excellent. Then automatic sieving machine and powder supply center customers can choose which one to equip with more specific needs. Usually, the automatic cyclone powder spray booth is used in conjunction with the powder supply center, which has achieved the effect of more convenient color change.

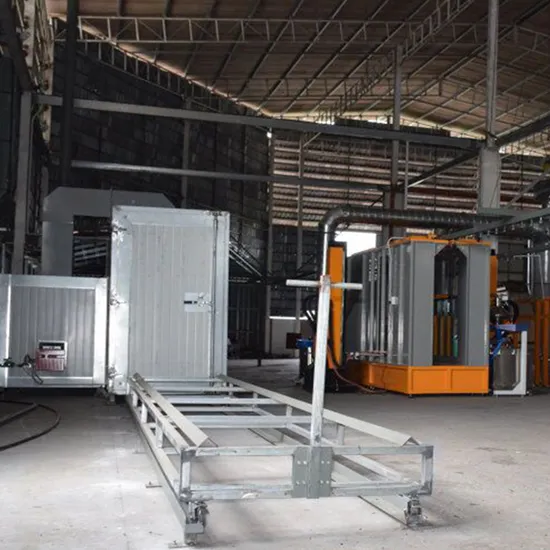

Powder Coating Oven with Trolley

1. Deigned with trolley with racking system, the trolley can design according to your items.
2. Completely new 100mm thickness rock wool board is perfectly to keep the temperature inside of oven which is very important.
3. I's a convection oven with indirect heating type,use heating exchange(stainless steel),more clean heat air and long life span.
4. PLC control system to operate the oven heating performance easily and precisely.
5. COLO powder coating ovens are designed to safely and efficiently cure previously applied powder coating media
Recommend products
Different type of powder coating line solution. We have more then 10 years professional engineer that can design a best line solution based or according to your supplied information.
Customer cases
Packaging & Shipping
Packing: large systems usually packing by pearl cotton.
Lead time: Powder coating line usually about 30~50days
