Diesel Engine Boat Tractor Paddy Field Tillage Field Plough Machine

Product Description

Diesel Engine Boat Tractor Paddy Field Tillage
Introduction:

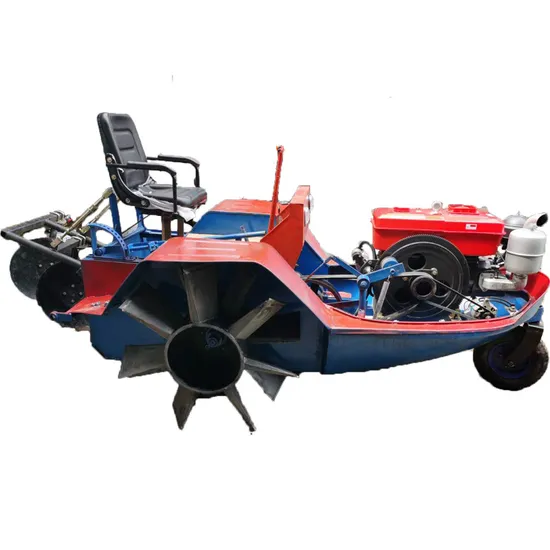

This boat tractor is our new product, the machine frame is boat shaped, a machine frame is arranged in the boat body; a riser at
the front end of the machine frame, a gear box on the machine frame positioned at the tail of the boat; a cultivation roller
on the gear box; an operating lever at the dynamic force side of the gear box; an armrest is fixed at the front end of the
gear box; a left and a right separating operating levers on the surface of the gearbox; a mudguard on the gear box in a straddling
way; a seat penetrates through the mudguard and is fixed on the gear box; the dynamic force is transferred to a belt pulley
through a belt and to the gear box so as to drivingthe cultivation roller. The boat tractor can be suitable for the paddy field
cultivation of different properties in mountains, plains, hills and lake districts.
Basic implements for this machine are: disc plough, fertilizer spreader, rake and roller.
Main Technical Parameters:

Model	AM-22A
Working efficiency	0.8-1ha./h
Engine	ZH1115G2 diesel
Power	16.2kw( 22HP), 2200rpm
Weight	760kg(with power and disc plough)
Wheel track	1250mm
Wheel base	1670mm
Driving wheel vertical amplitude modulation	300mm
Guide wheel radius	200mm
Suspension lifting device	Ratchet pendulum rod disc control
Power clutch control device	Belt clutch
minimum turning radius	1.75m
Min ground clearance	145-245mm(adjustable)
Diameter of disc plough	205mm
Min working depth	180mm
Min working width	480mm
Diameter of rubber driving wheel	375mm
Diameter of water paddy wheel	365mm
Max working speed	3.5m/s
Working efficiency	0.53hm2/h
Oil consumption	180±20g/h
Walking speed	20-30km/h, max.40-50km/h
Overall dimension	3200x1500x1400mm
Packed size	2600x1600x1200mm
Cultivating depth	230±78mm
Capacity of fertilizer tank	60L
fertilizer apparatus	gravity type
Fertilization line number	6 lines
Distributing regulation mode	Rod type gate
