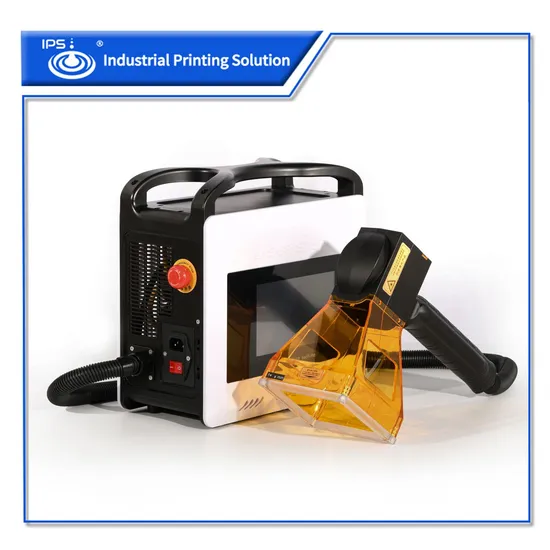

Handheld Laser Printer Lh820 20W 30W 50W Portable Fiber Laser Marker Marking Engraver Machine for Plastic Metal Glass Date Qr Code

Product Description

Product Description
Handheld Laser printer Lh820 20w 30w 50w Portable Fiber Laser marker Marking Engraver Machine for Plastic Metal Glass Date Qr Code
Easy-To-Operate
Intelligent touch screen operation interface
Interface contend is easy understand
Machine small and tiny,carry is easy!
Don't worry complex operation.
Supprort various data
Date, LOGO, picture, QR code, bar code
CODE39, CODE128, CODE126, EAN13, PDF417, 01CODE, QR, AZTECCODE, DM, GS1DM, DOTCODE, HANXINCODE
Stable Quality
Machine adopt superior quality assembly.
High efficiency
Line speed up to 7000mm/s
Easy-To-Operate Easy to integrate
Intelligent touch screen operation interface Thin and light body with high-density material
System content is easy to use High-transmitted fused silica lens ensures high stability
Support various languages The focal length can be adjusted freely, which can adapt to various
working distances, and the production line integration is more flexible
Long-Term Operation Stability Efficient
Use high-quality and precise parts, say no to substandard products Line speed up to 7000mm/s
Self-developed software ensures stable performance without any faults Utilizes standard and customized communication protocols
High performance self-developed smart chip, high efficiency in
processing of huge date and complex graphics.
Certifications
SPECIFICATIONS OF IPS-LH8 Series

Model	IPS-LH820	IPS-LH830	IPS-LH850
Material	Engineering Plastics
Laser Gun Model	Fiber Laser Generator
Laser Power	≥18W	≥25W	≥50W
Laser Wavelength	1064nm
Scanning Method	High-precision two-dimensional scanning system
Marking Speed	≤7000mm/s
Main Control	Highly integrated motherboard with built-in 7-inch touch screen
Maximum Pulse Energy	0.75mJ
Frequency Adjustable Range	30-60 kHZ
Operating System	Linux
Cooling system	Air cooling
Type of drawings	Both dot matrix and vector
Reflector size	Standard:8.5mm
Marking field	50mm×50mm(Standard) \ 100mm×100mm
Positioning method	Red Light with Outline Indication
Lines of marking	Any line within the marking field
Line Speed	650 characters/sec(according to the material and contents)
Language	Simplified Chinese, Traditional Chinese, English, Korean, Russian, Arabic numerals and other standard fonts
File Format	BMP/DXF/HPGL/JPEG/PLT
Barcode/QR code	CODE39,CODE128,CODE126,EAN13,PDF417,01CODE,QR,AZTECCODE,DM,GS1DM, DOTCODE,HANXINCODE...
Power Supply	220V
Maximum Power Consumption	≤200W		≤300W
Weight	7.8KG		8.5KG
Handheld Size	325mmX79mmX151mm		241.5mmX79mmX151mm
Control Box Size	310mmX260mmX307mm		310mmX269mmX307mm
Pollution Level	2
Overvoltage Category	II
Working Environment Temperature	0-40ºC
Working Environment Humidity	30 -85 RH (No condensation)
