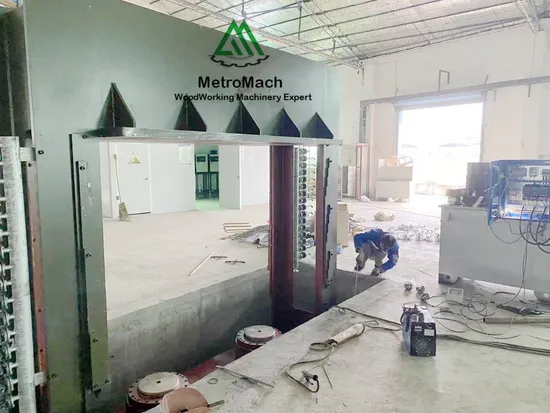

Woodworking Automatic Hydraulic Plywood Melamine Multi-Layer Hot Press Machine
| US$25,000.00-40,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
BY214X8/5-15
Processing Technics
Hot Press
Structure
Frame Type
Pressing Shape
Flat Press
Platen Surface Pressure
Low Pressure
Pressing Layer
Multi Layer
Work Mode
Period
Controlling Mode
CNC
Automatic Grade
Automatic
Certification
CE, ISO
After-sales Service
1 Year
Transport Package
Standard Export Packing
Specification
3590*1370*4670mm
Trademark
METRO MACH
Origin
China
HS Code
8465990000
Production Capacity
700sets/Year
Product Description
Main Features
Plywood Hot Press machine is one of the main equipments in producing plywood,blockboard, film faced plywood, fancy plywood.
1.The main frame is welded by No.1 national standard steel plate,strong body, high rigidity.
2. Adopt micro computer control system and imported hydraulic units, easy to operate,long working life.
3. Adopt advanced hydraulic pump station and plunger cylinders, featured product--aviation technology low noisy hydarulic pump.
4. All the hot platens are made of the best quality steel plate, after solid drilled and fine polished, good thermal conductivity.
5. It has manual and automatic transfer function to meet user's demand.
Technical Specifications
1. Various pressure: 400T/500T/600T/800T/1000Ton and more.
2. Plywood sizes: 1220x2440mm, 915x1830mm etc.
| Model | BY214X8/6-10IIZ |
| Nominal pressure | 6000KN |
| Feeding direction | Horizontal |
| Layers counting | 15layers |
| Daylight | 70mm |
| size of hot platen | 2700x1370x52mm |
| main cylinders | 2pcs x φ400mm x 1050mm (WUXI cylinder) |
| Heating medium | Thermal oil or hot steam |
| Low pressure pum | 2x355L/min |
| Allowed pressure | <5Mpa |
| Power | 2 x 11kw |
| Control Method | Automatic Pumping station |
| Frame | Composite frame for export container |
| Thickness of steel plate | 50mm |
| Machine weight | 45Tons |
