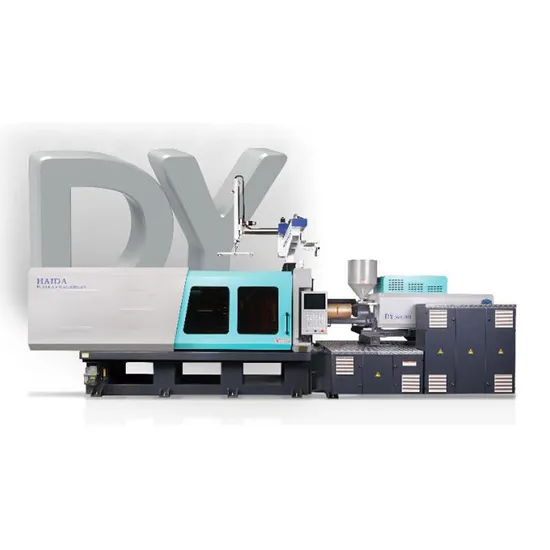

Haida HD130dy/L Oil-Electric Composite High Precision Servo Energy-Saving Injection Molding Machine

Product Description

Product Description
HDDY Hybrid Series:
High Precision>>The electro-hydraulic compound molding machine is now the most precise machine. It uses pressure, flow and position control of the full closed-loop compound operation, to achieve truly high-precision, high repeatability of the full closed-loop control.
______________________________________________________________________________________________________________________ Increase production efficiency>>Rapid response, high production efficiency, high repetition accuracy, saving raw materials.
______________________________________________________________________________________________________________________ Excellent Energy Saving Performance>> Energy saving: during the cooling phase, the motor does not need to work, and the power consumption is 0.
Water and oil saving: compared with the traditional hydraulic power system hydraulic oil consumption reduced by 1/4 ~ 1/3, can achieve no cooling, thus greatly saving water.
______________________________________________________________________________________________________________________
Longer Machine Life, cleaner working environment>> Less noise emission: Hydraulic System Noise Control within the scope of national standards.
Waste heat and cooling energy needs low, more suitable for the production environment with Air Conditioning: Injection Molding Machine from start-up to enter the steady-state oil temperature rise 8 °C-10 °C.
______________________________________________________________________________________________________________________
Basic Information:

Number Item

HD130DY/L

Category

HDDY Series

OEM

Available

Warranty

1 Year

Factory

Yes

Model NO	HD130DY/L		Computerized	Computerized
Certification	CE, ISO9001:2008		Plastic Processed	PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLD
Style	Horizontal		Packaging Details	wooden pallet
Plastic Type	Thermoplastic		Machine Type	Hybrid(Eletric for injection parts,Hydraulic for clamping parts)
Condition	New		Energy Saving	Servo Energy Saving
Brand Name	Haida		Production Capacity	100 Set/Sets per Month
After-sales Service Provided	Engineers available to service machinery overseas		Warranty of core components	1 year
Place of Origin	Zhejiang,Ningbo,China		Local Service Location	Viet Nam, Brazil, Thailand, South Africa, Uzbekistan

Detailed Photos
INJECTION SYSTEM:
INJECTION PARTS
Charging and injection are directly driven by servo motor.System with
ball-screw of famous foreign brands special axial bearing ensure precise and efficient ejection device.Injection pressure sensor has strong anti-interference and high resolution.Full hard steel alloy screw has high strength,good corrosion resistance and longer service life.
Professional self-lubrication system,apply high pressure/heat/water resistant high performance lubricating grease for injection ball screw.
Reserved plastic bearing and synchronous pulley bearing and high load-carrying capacity can extend service life of the machine.

________________________________________________________________________________________________________________________________________
HYDRAULIC SYSTEM:

HYDRAULIC CLAMPING PART
Adopt high-performance hydraulic components of famous international
brands,and use efficient energy-saving hydraulic servo system for clamping,ejection,corn and platen adjustment,etc,with sophisticated and complete corn and un-screwing functions.It can realize linkage clamping and charging,and shorten molding cycle.Perfect combination of servo motor and interal gear pump and closed-loop control that formed through high precision sensors has greatly improved equipment precision.Use optional clamping proportional directional valve to realize higher position precision and quicker response.

Product Parameters

ITEM	MODEL				HD130DY/L
CLAMPING FORCE				KN	1300
OPENING STROKE				MM	380
SPACE BETWEEN TIE-BARS				MM	420*420
MOLD THICKNESS(MIN-MAX)				MM	150-450
EJECTOR STROKE				MM	130
EJECTOR FORCE				KN	45
MOLD LOCATION RECESS DIMETERS				MM	125
					A	B	C	A	B	C	A
SCREW DIAMETER				MM	28	32	36	28	32	36	25
SCREW L/D RATIO				L/D	21	21	18.6	21	21	18.6	20
INJECTION VOLUME				CM3	80	112	142	80	112	142	56
SHOT WEIGHT				G	73	102	129	73	102	129	51
PLASTICZING CACACITY(PS)				G/S	11	16	22	11	16	22	8
SCREW RPM				RPM	400
INJECTION UNIT					250			250H			160S
SHOT SPEED			MM/S		250			350			500
SHOT RATE			G/S		140	183	230	196	256	324	223
SHOT PRESSURE			MPA		280	220	175	280	220	175	280
HOLD PRESSURE			MPA		220	160	130	220	160	130	220
OTHERS
POWER CAPACITY		KW/A			49			64			64
HEATER		KW			7.5			7.5			7.5
DIAMENTION		M			4.78*1.19*1.93
WEIGHT		T			3.8

Application
APPLICATION FIELD:


HAIDA oil-electric composite high-precision serve energy-saving injection machine combines hydraulic injection machine and electric injection machine,which is more precise and faster than traditional hydraulic machine,and is ideal substitute of fully-electric injection machine in current domestic market.

Auxiliary Machines
Company Profile
HAIDA MACHINERY established in the year 1991 at Ningbo, is one of THE TOP 10 CHINESE injection molding machinery manufacturer. Nearly 30 years, we had established more than 60 sales and service agencies in China and overseas.
We are manufacturing different types of injection molding machines and range starts from 50 Ton to 3300 Ton.
We committed to providing the complete solutions for Plastic. Our name involved in manufacturing and supplying a flawless quality range.
