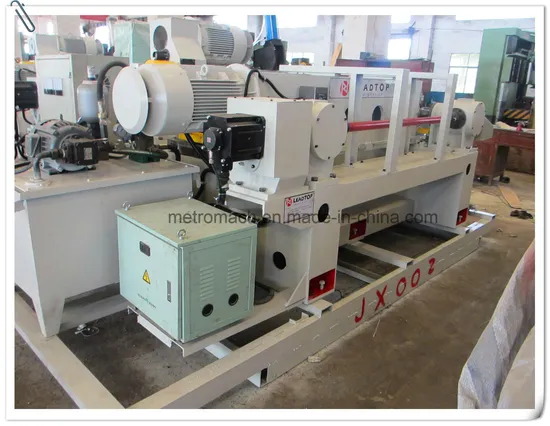

Woodworking Spindle Less Veneer Rotary Peeling Lathe Machine for Veneer
| US$20,000.00-30,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
BXQ1814/38XD
Tool Holder
Single-tool Holder CNC Lathe
Automatic Grade
Automatic
Precision
High Precision
Setting Mode
Floor-type
Controlling Mode
CNC
Power Source
Electric
Processing Accessory
Wood Veneer
Certification
CE, ISO, FDA
Transmission Way
Single Roller Moving
Function
Wood Veneer Peeling and Clipping
System Language
English/Spanish/Russian
Size
4feet
Color
White
Motor
Siemens
Installation Way
Without Foundation
Wood Species
Hard or Soft Woods
Working Voltage
380V/415V/440V
Delivery Way
Container
Transport Package
Container
Specification
4900x1900x1550mm
Trademark
METRO
Origin
China
HS Code
8465960000
Production Capacity
100sets/Year
Product Description
Plywood veneer peeling machine with casting frameMain features:
1.2018 all new generation research & design WITH CASTING IRON BODY.
2.Long working life no deformation and stable working.
3.Save 40% - 60% of power, reduce production cost.
4.Veneer double sides smooth and thickness evenness less than 0.05mm.
5.Double motors rollers, speed stable, overcome the unstable Indian voltage.
6.Bigger power inverter and English language PLC control system.
7.Double rollers moving make sure the veneer peeling more stable to get best quality wood veneer.
8.Automatic electrical lubrication system for all important mechanical parts.
9.Automatic air cylinders dropper for final log to save production time.
10.Assembled gearbox and Japan NSK bearings.
11.Best quality linear guide bar, high precision.
13.Exclusive manufacturer adopt the Japan mitsubishi servo motor and system to work with the Germany siemens motors.
14. Exclusive mfr adopt the gears transmission instead of chains transmission, higher efficiency, more stable.
Technical specifications:
| Item | Specifications | Remark |
| Machine model | BXQ1814/38XD | |
| Max. peeling length | 1400mm | Roller length 1500mm |
| Max. peeling diameter | Φ380mm | Max.opening Φ380mm |
| Min. peeling diameter | Φ32mm | Cross roller can be Φ 28mm |
| Peeling speed range | 0-55m/min | Frequency adjustable speed |
| Veneer thickness range | 0.5-3.6mm | Double sides smooth |
| Double rollers motor power | 15Kw | Germany Siemens |
| Single rollers motor power | 15Kw | Germany Siemens |
| Feeding motor power | 11Kw | Japan Mitsubishi Servo motor |
| Double rollers speed reducer | Assembled gearbox | Working stable, free maintenance |
| Single rollers speed reducer | Assembled gearbox | Working stable, free maintenance |
| Feeding screw speed reducer | Assembled gearbox | Working stable, free maintenance |
| Rollers specification | Φ125mm diameter | High frequency quenching treat Two sections, thicker chroming. |
| Machine structure material | Q235B | 40mm thickness steel plate |
| Peeling knife size | 1500x180x16mm | Japan tech |
| Machine overall dimension | 4500x1900x1500mm | Installation dimension |
| Machine weight | 6800Kgs | Net weight |
