OEM Customized 4ubf-100 0-250mm Digging Depth Adjustment Range Combine Farm Potato Harvester

Product Description

Product Description

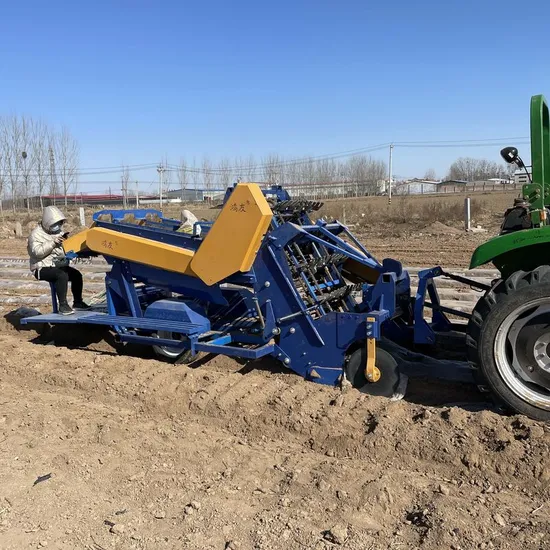

AUTOMATIC LOADING HARVESTER
Potato automatic loading harvester has good performance and efficiency and can harvest crops directly into the transport truck.
It can be made according to the actual planting situation of farmers with the corresponding width of the harvester, which is mainly used for harvesting Potatoes, sweet potatoes, and other underground root crops.
Potato automatic loading harvester has automatic loading and harvesting efficiency high, low damage rate, light operation, no vibration, no blocking grass, fast soil leakage, simple structure, long service life, and so on.
These machines come in different sizes and types, including manual, semi-automatic, and automatic models, as well as those specifically designed for small-scale or large-scale farming operations.
Product Parameters

	4UBF-100 PARAMETER LIST
NO	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Model	4UBF-100	14	Matching Hanging Width	580mm
2	Structural Style	Pull Type	15	Type of Excavation Device	Fixed blade
3	Walking mode	Wheel Type	16	Blade material	65Mn
4	Tire/track model	LT-195-70R14	17	Digging Depth Adjustment Range	0-250mm
5	Number of tires/tracks	2	18	Depth Limiting Mechanism Type	Other
6	Tire/track spacing(center)	975mm	19	Minimum size that can be picked up	33.5mm
7	minimum ground clearance	300mm	20	Type of cleaning separation device	Vibrating Screen
8	Working Size (length*width*height)	4850*2100*1970mm	21	Conveyer Type	Grid Chain Type
9	Overall Weight	1380kg	22	Conveyor Chain Clearance	front:50mm behind:40mm
10	Working Width	1000mm	23	Chain Bar Materia	55CrSi
11	Operation Efficiency	0.13~0.2/h	24	Collection Method	Instant sorting and bagging
12	Supporting Power/Machine Horsepower	≥70Hp	25	Discharge Method	Manual handling
13	Matched To The Power Output Shaft Speed	540r/min
Note:The values in thespecification table are theoretical values,please refer to actual values.

Detailed Photos
MULTIFUNCTIONAL HARVESTING:
This machine is designed to harvest multiple crops, including potatoes, sweet potatoes, and peanuts, making it an ideal investment for farmers with diverse agricultural needs.
RELIABLE PERFORMANCE:
The machine features a gear drive system and a powerful motor, ensuring reliable performance and durability in various farming conditions.
SUITABLE FOR VARIOUS FARM SIZES:
This harvester is suitable for farms of all sizes, including small, medium, and large-scale operations, making it a versatile addition to any agricultural operation.
OUR ADVANTAGE:
1.It features working efficiency, lower breakage rate, and lower skin break rate.
2. Light & quick running without vibration, no blocking by the grasses, leaks the soil quickly, lower buried potato rate.
3. The penetrating angle of the excavating device is the same as the elevation angle of the transfer & separate device. It effectively solves the problem of soil accumulation after shoveling.
4. Matching power is the common four-wheel tractor, it features wide adaptation, strong applicability, low investment, and ease of operation.
OUR FEATURE:
1. Single-row potato harvester machine for sale can be used in various tubers harvest, such as potato, sweet potato, peanut, garlic, and so on.
2. This Single-row potato harvester machine for sale has high efficiency, low breaking rate, and fast working speed without vibration.
3.The Single-row potato harvester machine for sale has no block grass & soil leakage fast, simple structure & durable.

FAQ
Q1. What are your terms of payment?
A1:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What are your terms of delivery?
A2:EXW, FOB, CFR, CIF. Which delivery terms depend on your choice?

Q3. How about your delivery time?
A3: Generally, it will take 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Most time we have some in stock.

Q4. Are you interested in a dealership with a local company?
A4: Of course, we are quite interested in this business. We'd like to cooperate with some local partners to sell more HONGYOU machines in the local market and supply better service.


Q5. Do you test all your goods before delivery?
A5: Yes, we have 100% test before delivery and we can email you the test video if you need it.

Q6.Can you customize the machine for me?
A6: Yes, we can customize it according to the customer's requirements.
