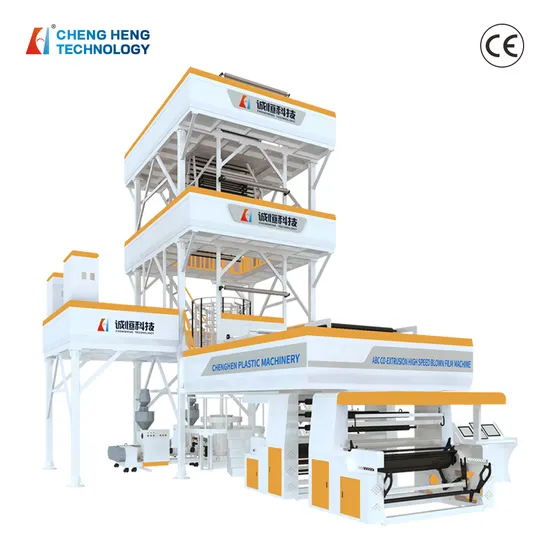

Chengheng Low Waste Material High Output Co-Extrusion Blown Extruder Fully Automatic HDPE LDPE PE ABC (IBC) 3 Layers Film Blowing Machine

Product Description

Oversea After Sales New Design PE LDPE HDPE Plastic Extruder Machine Three Layers ABC (IBC) Film Blowing Machine Product Description
ABC three-layer co-extrusion film blowing machine are designed developed by our corporation according to market need. It used for blowing LDPE/HDPE/LLDPE packaging films, and it has good insulation, for instance holding temperature,antihumid, antibreeze,anti-rain,anti-rost,insulation oxygen,oil resistive, and so used for light and heavy-duty packaging.For example fresh fruits, meat-feeding,salt vegetables, fresh milk, liquid drink. The most important ,this film blowing machine are equipped with IBC system to improve the transparency and uniformity of film products, and significantly increased the output of the machine.
Product Parameters

Model	3L-45-50-45/1200	3L-50-55-50/1400	3L-55-65-55/1600/1800	3L-65-75-65/2200	3L-85-95-85/2400
Width of the film	600-1000mm	600-1200mm	800-1400/1000-1600mm	1400-2000mm	1600-2200mm
Thickness of the film	0.02-0.2mm
Output	160kg/h	250kg/h	300kg/h	380kg/h	600kg/h
	According to different width, thickness of film,die size and raw material characteristics to change
Raw material	HDPE/LDPE/LLDPE/MDPE/EVA
Diameter of screw	Φ45/50/45	Φ50/55/50	Φ55/65/55	Φ65/75/65	Φ85/95/85
L/D ratio of screw	32:1(With force feeding)
Gear box	146# 173# 146#	173# 180# 173#	200# 225 200#	225# 250# 225#	250#/280#/250#
Main motor	15kw/18.5kw/15kw	18.5kw/30kw/18.5kw	37kw/45kw37kw	45kw/55kw/45kw	75kw/95kw/75kw
Die diameter	Φ250mm	Φ300mm	Φ350mm/400mm	Φ500mm	Φ550mm

View more products ,you could click https://chengheng27.en.made-in-china.com/ Detailed Photos
Company Profile
Hebei Chengheng Plastic Machinery Technology Co., Ltd. is located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. The transportation is very convenient. The company covers an area of 22,000 square meters. We have a modern intelligent operation workshop, specializing in the R&D and production and sales of biodegradable film blowing machines, ultra-high-speed intelligent film blowing machines, multi-layer co-extrusion intelligent film blowing machines and other plastic machinery.
Certifications
Packaging & Shipping
FAQ
Q: How about after-sales service? How long is the machine warranty?
A: We guarantee lifetime after-sale service once you bought our machine, you can call us or send us any questions about the machine.
Q: How long is your delivery time and how many machines can you produce per month?
A: Normally our film blowing machine will be delivered within 30 days after 100% testing .
Q: How long can your machine work continuously?
A: We advice the machine working 24 hours a day without stopping, which not only increases production but also saves energy.
Q: Does your factory need agents? What are the thresholds?
A: We need to recruit agents, welcome to inquire for more details.
Q: Where is your factory? How can I visit there?
A: We are located in Ningjin County, Hebei Province, one of China's plastic production and processing distribution centers. It only takes one hour by high-speed rail from Beijing and 2-3 hours by plane from Shanghai and Guangzhou.Warmly welcome domestic and foreign customers to visit us.
