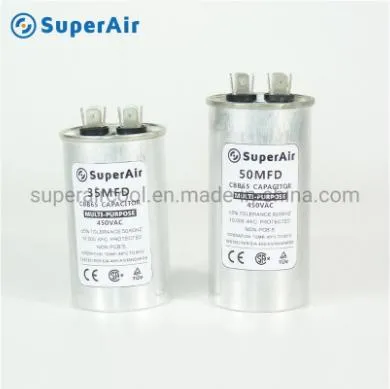

Cbb65 Dual Run Capacitor Circular Air Conditioner

Product Description

Product Description
370V/440V CBB65 Aluminum Run Circular Start Capacitor for AC Motor Run or Fan Start or Condenser Straight None induction winding structure of metallic polypropylene membrane Credible insulation performance, super electric performance with ability of self-heating and safety explosion proof equipment Excellent heat dispersion, small volume, wide range of capacity, low loss stable capacitance With stand impact current, strong overload performance and long live span Suitable for starting and operating 50Hz or 60Hz AC single phase electro-motor Working Temperature: -25 ºC to 70 ºC Capacitance Tolerance: J:±5% K:±10%

Capacitance	Voltage	Dimesion	Voltage	Dimesion	Terminal	Master Box
5uf	370V	45X55	440V	45X55	2X4	100
7.5uf	370V	45X55	440V	45X55	2X4	100
10uf	370V	45X55	440V	45X55	2X4	100
12.5uf	370V	45X65	440V	45X65	2X4	100
15uf	370V	45X65	440V	45X65	2X4	100
17.5uf	370V	45X65	440V	45X65	2X4	100
20uf	370V	45X65	440V	45X65	2X4	100
25uf	370V	45X85	440V	45X85	2X4	100
30uf	370V	45X85	440V	45X90	2X4	100
35uf	370V	45X105	440V	45X105	2X4	100
40uf	370V	45X105	440V	45X105	2X4	100
45uf	370V	45X105	440V	45X105	2X4	100
50uf	370V	45X105	440V	45X105	2X4	100
55uf	370V	45X105	440V	45X105	2X4	100
60uf	370V	45X105	440V	45X105	2X4	100
65uf	370V	45X105	440V	45X120	2X4	100
70uf	370V	45X105	440V	45X120	2X4	100
80uf	370V	45X105	440V	45X130	2X4	100
