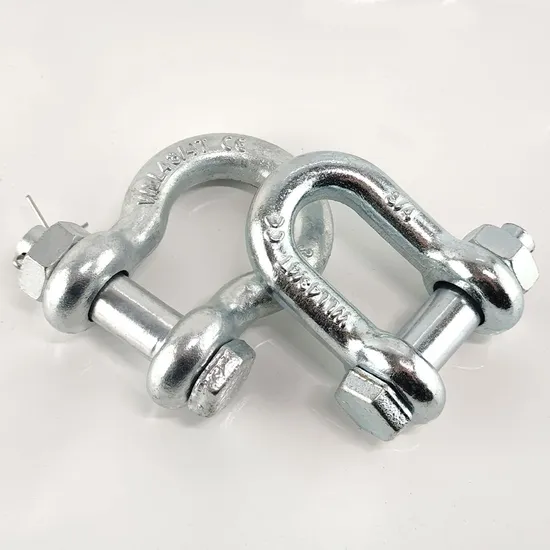

Factory Price Drop Forged G2130 Us Type Galvanized Bow Shackle
Basic Info.
Model NO.
G2130
Usage
Industrial
Color
Red or Yellow
Condition
New
Product Name
Powder Plastified Forged G2130 Shackle
Size
3/16′′-3′′
B.L.
6 Times The W.L.L
Type
G2130 Bow Shackle
Delivery
10-20 Days
Application
for Lifting
Process
Forged
MOQ
100
Surface Finish
Powder Plastified
Sample
for Free
Transport Package
Cartons/Bags Then in Pallets.
Specification
ce
Trademark
ls brand
Origin
Shandong, China
HS Code
73269090
Production Capacity
10000PCS/Month
Product Description
For lifting application.
Forged -quenched and tempered.
Bow body -surface:powder plastified.
Nut-surface finish: eletric galvanized
Bolt -surface finish: powder plastified.
| ITEM NO. 362- | weight/lbs | wll/t | B.l/t | A+/-1.5 | C+/-1.5 | D+/- 1 | L+/-3 | H+0.2 | N | L1+/-0.5 | B |
| 3/16 | 0.06 | 0.33 | 1.98 | 9.7 | 15.3 | 4.8 | 37.5 | 7 | 6 | 32 | 3.2 |
| 1/4 | 0.11 | 0.5 | 3 | 11.9 | 19.8 | 6.35 | 46.8 | 8.7 | 7.5 | 40 | 4 |
| 5/16 | 0.22 | 0.75 | 4.5 | 13.5 | 21.4 | 8 | 53 | 11.5 | 9.5 | 48.4 | 5 |
| 3/8 | 0.33 | 1 | 6 | 16.8 | 26.2 | 9.7 | 63.3 | 13 | 11.2 | 58.8 | 6 |
| 7/16 | 0.49 | 1.5 | 9 | 19 | 29.5 | 11.2 | 78 | 15 | 13.4 | 65.9 | 7 |
| 1/2 | 1.01 | 2 | 12 | 20.6 | 33.3 | 12.7 | 83.3 | 17 | 15.2 | 73.7 | 8 |
| 5/8 | 1.60 | 3.25 | 19.5 | 27 | 42.9 | 17.5 | 106.5 | 21 | 19 | 94 | 10 |
| 3/4 | 2.42 | 4.75 | 28.5 | 32 | 50.8 | 20.6 | 126.5 | 23.5 | 21.2 | 108.7 | 10 |
| 7/8 | 3.95 | 6.5 | 39 | 36.6 | 58 | 24.6 | 148.1 | 26.5 | 24 | 127.8 | 12 |
| 1 | 5.66 | 8.5 | 51 | 43 | 68.4 | 27 | 166.6 | 29.5 | 27 | 145.8 | 13.5 |
| 1-1/8 | 8.27 | 9.5 | 57 | 46 | 74 | 31.75 | 190 | 32 | 30 | 160.6 | 15 |
| 1-1/4 | 11.71 | 12 | 72 | 51.6 | 82.6 | 35 | 209.6 | 38.5 | 36 | 181.4 | 18 |
| 1-3/8 | 15.83 | 13.5 | 81 | 57.2 | 92.2 | 38.1 | 232.7 | 41 | 39 | 188.3 | 19 |
| 1-1/2 | 20.8 | 17 | 102 | 60.5 | 98.6 | 41.2 | 254 | 41.5 | 39 | 211 | 20 |
| 1-3/4 | 33.91 | 25 | 150 | 73.2 | 127 | 57.2 | 313.5 | 50.5 | 48 | 281.6 | 39 |
| 2 | 52.25 | 35 | 210 | 82.5 | 146 | 61 | 347.5 | 58.5 | 56 | 311 | 46 |
| 2-1/2 | 98.25 | 55 | 330 | 105 | 184.2 | 79.5 | 453.2 | 70..5 | 68 | 403 | 58 |
| 3 | 154 | 85 | 510 | 127 | 200.2 | 92 | 546 | 82.5 | 80 | 476 | 64 |
Warning : Ultimate load is 6 times the Working Load Limit
For Working load limit reduction due to side loading applications see instructions .
The above Working Load Limit is based on in-line load 0 .
NEVER EXCEED WORKING LOAD LIMIT !!!
