Wholesale Price 500W 700W 1000W Pure Sine Wave Inverter 12V 24V Pure Sine Wave Inverter for DC Power System
| US$57.62-118.73 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GPSW-T
Output Power
300-1500W
Grid Type
off-Grid Inverter
Output Type
Single
Circuit Topologies
Half-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Transport Package
Safety Packing
Specification
300-1500W
Trademark
KEMAPOWER
Origin
China
HS Code
8504403090
Production Capacity
60, 000PCS/Year
Product Description

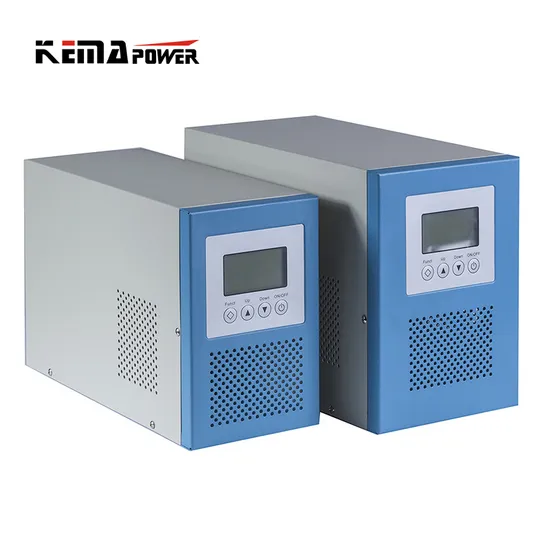

HOME UPS/INVERTER WITH CHARGERGPSW-T 300-1500W
KEY FEATURES
1. Home UPS / inverter with charger 300W/500W/700W/1000W/1500W
2. Use as backup HOME UPS or Off grid solar inverter
3.Selectable Grid power priority, Solar Power priority or power Saver Modes
4. Low frequency toroidal transfromer, Pure sine wave with AVR
5. LCD Display , with Alarm Function too
6. Automatic Transfer Time less than 10ms
7. Max 30A Adjustable Charge Current , selectable battery type
8. Auto transfer time 10 Ms, UPS design
9. Comprehensive protection for overload,short-circuit,Battery Low and else
10. Smart fan and Alarm
11. Rs232 communication , LiFePo4 Battery optional.
Technical Specifications
| Model | GPSW 300T | GPSW 500T | GPSW 700T-12 | GPSW 700T-24 | GPSW 1000T | GPSW 1500T | |
| AC output | Rated Power(W) | 300W | 500W | 700W | 700W | 1000W | 1500W |
| Voltage(VAC) | 230V±10% | ||||||
| Frequency(Hz) | 50 or 60Hz | ||||||
| Wave Form | Pure Sine Wave | ||||||
| AC on/off Switch | YES | ||||||
| AC input | Voltage(VAC) | 73-138VAC or 145-275VAC | |||||
| Frequency(Hz) | 45-65Hz | ||||||
| Battery | Battery Bank Voltage | 12VDC | 12VDC | 12VDC | 24VDC | 24VDC | 24VDC |
| External Battery Advice | According to the needs of customers | ||||||
| Battery Switch | YES , External battery breaker for user | ||||||
| Grid Charger | AC Charge Range | 110V or 220V +- 25% | |||||
| Charge Current | 12VDC 15AMP | 12VDC15AMP | 12VDC 15AMP | 24VDC15AMP | 24VDC15AMP | 24VDC15AMP | |
| Display | LCD Display | Working Mode, input and output VAC, Hz, BAT %, Load %, setup working mode, battery type ,Buzzing icon, Fault | |||||
| Alarm | overload bat, alarm 4time /1sec; battery low protection,alarm 2times/2 secs;over Temp ,alarm 2 secs pause 1 sec | ||||||
| Fan Start Temperature | >45ºC turn fast;<42ºC slow turning | ||||||
| Operating Ambient Temperature | -20 - +50ºC | ||||||
| Storage Ambient Temperature | -25 - +55ºC | ||||||
| Operating/Storage Ambient | 0-90%non-condensing | ||||||
| Product Size:D*W*H(mm) | 302*122*188 | 316*149*215 | |||||
| PCS/CTN | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | 2PCS/CTN | |
| Package Size:D*W*H(mm) | 375*195*260 | 410*215*280 | 485*437*337 | ||||
| G.W/ CTN (KG) | 13 | 15.6 | 17.6 | 19 | 22 | 25 | |
Product Display3-- Fan
4--RS232 communication interface(optional function)
5--Battery input terminals
6-- AC input socket
7-- AC output socket
