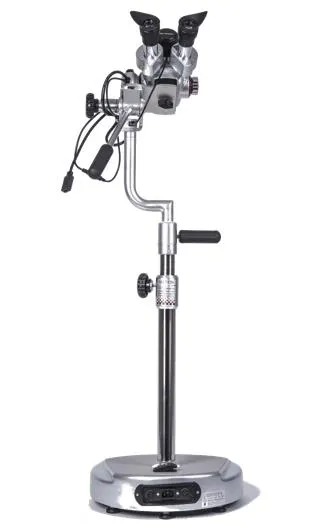

AC-2000da Optical Colposcope with HD Camera for Gynecology

Product Description

ALLTION AC-2000DA Series Colposcope is based on AC-1000 series platform with has sold hundreds of units worldwide. It is a combination of classic aesthetics and moderm technology.
The brand-new Colposcope with fashionable, dynamic and elegant curves is designed by Mr.Zhang Xun who won following awards:

2007 RED DOT concept design award: Best of Best

2008 RED DOT concept design award

2009 IF product design award gold

FEATURES AND BENEFITS
Direct Access Features. No Blockage Easier Access
Apochromatic Optic Design
3-step Magnification and/or Single Magnification
LED Illumination for Long Life & Low Cost
Integrated Video Camera
Two Optical Circles for Quick Measuring Size of Tissue
Integrated Green Filter
Compact, Light Weight Base with 5 Wheels for Easily Maneuver and More Stable
Ergonomic Disgn for Long Time Precsion Operation Comfortably
Simple Setting Up the Colposcope
SPECIFICATION OF ALLTION AC-2000 SERIES COLPOSCOPES

1. Total magnification 3.75x, 7.5x, 15x for 3-step models and 7.5x for single magnification models
2. 300mm focal length
3. Field of View: 79mm, 39mm, 19mm dia. For 3-step magnification models and 39mm for single magnification models
4. Depth Field: 4.5mm, 1.13mm, 0.76mm for 3 step magnification models and 1.13mm for single magnification models
5. Light intensity: > 30,000 LUX
6. Individually adjustable eyepiece 16.7x
7. Right eyepiece with built-in two circles for you to measure the size of the problem you see
8. Built-in rheostat for brightness adjustment
9. User-selectable built-in green filter for enhanced contrast
10. LED buib is easily changeable
11. Working Height 975mm to 1135mm
12. Fine focus adjustment Handles
13. Two ( Gross / Fine ) height adjustment Handles
14. Unit is completely assembled and ready for use once power is on
15. Main Power Suppy: 100V to 240V
16. 1080P Full HD Real-time output of image
Subject to changes in design and scope of delivery and as a result of ongoing technical development.
