Automtic Carbon Steel Wire Drawing Device Straight Line Wire Drawing Machine

Product Description

Product Description

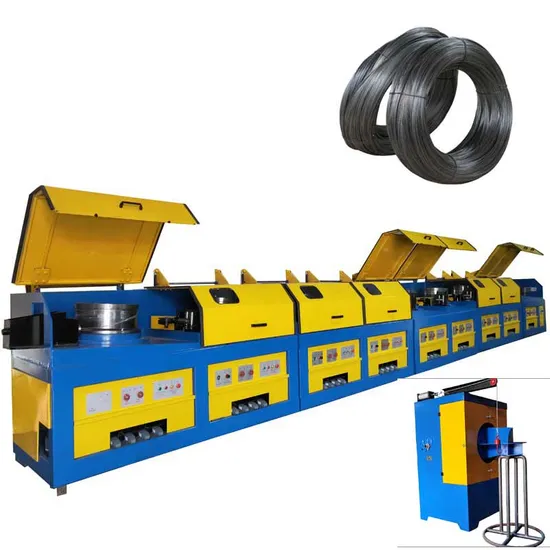

Straight line type wire drawing machine
(1) Function:
Used for drawing low carbon steel wire,medium carbon steel wire and high carbon steel wire, for making binding wire, welding wire, galvanized wire,etc.
(2) Wire Diameter :
-Max inlet wire:12mm
-Min outlet wire:0.8mm
(3) Control System :
PLC control,touch screen,frequency inverter control , water cooling
(4) Advantage :
Super high speed, strong structure , high precision on wire diameter
Product Parameters

Model No.	TOPS-SLD
Drum diametet	400mm,560mm,600mm,700mm,800mm
Max inlet wire diameter	12mm
Min.outlet wire diameter	0.8mm
Single motor power	11kw,15kw,18.5kw,22kw,30kw,45kw

Capstan:steel ZG45-55, hard alloy tungsten carbide is Drawing die box:The drawing die box is metal welded
spraying-painted on working surface. It is divided into lubrication drawing power box and With HRC60-70. water cooling box.Water flowing automatically for cooling
Electric motor:variable frequency motor,Hebei famous brand. Tension wire wheel:install last drum,wire take up smoothly
Protective cover:made of metal steel,used for safe production. Electric control cabinet:PLC control,frequency inventer
take up: metal bobbin/spool type take up: elephant nose/trunk type Packaging & Shipping
Delivery Time : 25-35 days after confirm order.
If shipping by FCL,wrapped with plastic film,loading in 20ft or 40ft container,according to drum number.
If shipping by LCL,machine will packed with wooden case.just used for only 1 or 2 drums,
Company Profile
Shijiazhuang TOPS HARDWARE Manufacturing CO.,LTD
we are a professional manufacturer of Wire Mesh Machinery, Galvanizing Line,Nail Making Machine,etc.
★Our factory located in shijiazhuang industrial zone, which mainly produce high technology hardware products such as Hexagonal Wire Netting Machine, Chain Link Fence Making Machine, Wire Drawing Machine , Electro Galvanizing Line and other related production lines . They are widely used in industry, constuction, agriculture, producing, etc.
★We have deal in this business more than 20 years, rich experience.We always take the service principle of "Being Honest while service standard of customers satisfaction" and supply products with excellent quality. We believe that quality leads to development.
★In order to improve the level of management,satisfy the demand of our clients,we passed the quality management system of ISO9001. " Good Reputation,Efficient Management and Excellent Service" make us take up an advantageous position in the world markets.
Certifications
customer and us
Our Service
Befor Sales:
1.The most suitable machine model will be recommended based on client's nail size, to meet client's production requirement. 2.Most competitive price
3. Welcome clients to visit us on site or by video call.
After Sales:
1.Spare parts Service and lifetime technical support; Engineer are available to install and debug the machine oversea if need. 2.Quality Guaranteed
3.24H on-line service
FAQ
1: What is your gurantee?A: Main frame for 1 year. But,our machine's quality is very good, and using long life.
2. What is your company normal payment terms?A: Usually we accept T/T 50% in advance and balance 50% before shipment.
3.What are your company normal export terms?A: We normal export with CFR, CIF and FOB trade terms.
4.How many days it will take you to produce mass production for us?A: Normally it takes about 35-40 days, it also depends on the order quantity and production seasons.
5. Are your engineers can go abroad to install machine?A: Yes, our engineers available to severvice machinery oversea and train worker.

if you have any needs,welcome to contact me!
