Agricultural Baling Gearbox Klf-Fk263 Hay Vertical Square Baler Gear Box
| US$200.00-500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KLF-FK263-SB
Automatic Grade
Automatic
Power Source
Tractor
Warranty
1 Year
Certification
ISO
OEM
Available
Ratio
1:2.69
Input
180HP
Inpu r.p.m
760
Output r.p.m
2044
Input N.M
786
Output N.M
1047
Transport Package
Crate
Specification
Cast iron
Trademark
KADIVA
Origin
Zhejiang China
HS Code
8483409090
Production Capacity
50000PCS/Month
Product Description

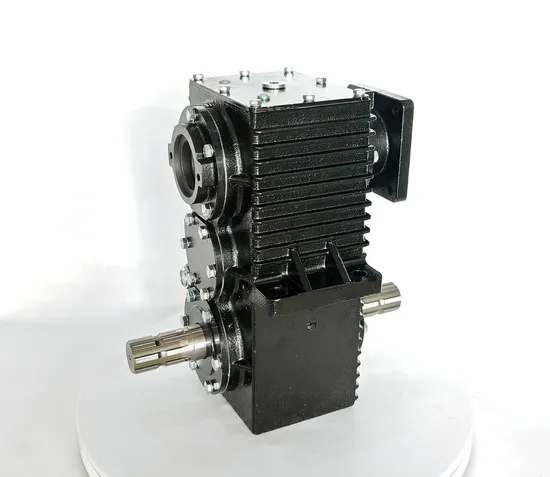

Agricultural Baling Gearbox KLF-FK263 Hay Vertical Square Baler Gear box Product DescriptionKLF-FK263 Square Dust removal kneading Baling Machine vertical gearbox.
This gearbox is used for the tractor power input at the front of dust removal and kneading square baler. Through the gearbox, the power is transmitted to two hydraulic pumps and the crushing device. The hydraulic pump transmits hydraulic power to the other power part of the machine to complete the machine's operating requirements.
KF-FK155 has a similar range of use and is used in the design structures of different manufacturers. The advantage of this gearbox is that the front upright box and the crushing box are designed into one body, which reduces the transmission structure. It makes the equipment smaller and lighter, reducing the weight of the machine and other advantages. Product Parameters
Detailed Photos
Click here for more products Company Profile
Please contact us if you need more informations
