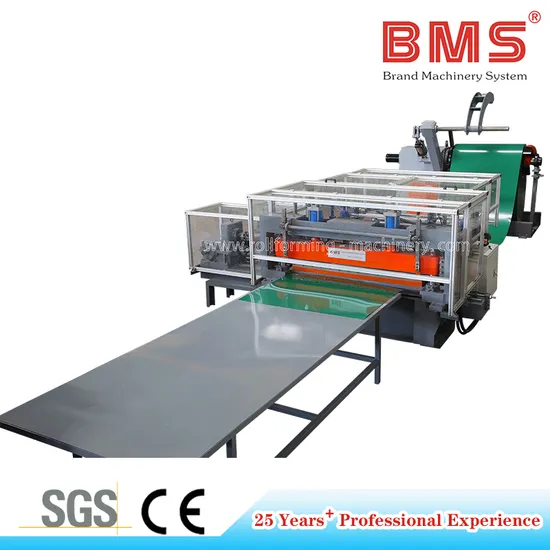

BMS Automatic Steel Coil PPGI/Gi Cut-to-Length Line Making Machine

BMS Automatic Steel Coil PPGI/Gi Cut-to-Length Line Making Machine

US$17,980.00-35,000.00 1 Piece (MOQ)

Basic Info.

Power Source
Hydraulic Pressure
Feature
Automation
Certification
ISO9001, CE
Warranty
24 Months
Customized
Customized
Condition
New
Working Material
Galvanized Sheet(Gi)Prepainted Galvanized Sheet
Thickness
0.5-2.0mm
Decoiler
Hydraulic/Manual for Options
Wall Thickness
18mm
Slitting Wall Thickness
40mm
Slitting Shaft
120mm
Motor Power
7.5kw+5.5kw
Slitting Function
4 Slitting
Line Speed
15-20m/Min
Transport Package
Main Body of High Speed Metal Stud and Track Roll
Trademark
BMS
Origin
China (Mainland)
HS Code
8455221000

Product Description

BMS Automatic Steel Coil PPGI/Gi Cut-to-Length Line Making Machine Product Description
The Features of the machine
1.Automatically forming and cutting at any length with pre-set quantity
2.Signal feedback from encoder showing length of product
3.The control panel enables to count a total length of finished coil
4.Rollers are alloy steel fabricated by CNC precision machine and hard chromium plated
5.Cutting die is SKD11 steel fabricated by CNC machine, thermal treatment get 55-60HRC
Material
Suitable Material thickness:0.5-2.0mm
Width:400,650,800,1000,1250,1300mm
Applicable material:Galvanized Sheet(GI),Pre-painted Galvanized Sheet(PPGI),
Cold Roll Steel(CRC),Hot Roll Steel(HRC)
With Yield Strength:235-550Mpa
Work Follow
5 ton Hydraulic Decoiler - Feeding Guide - Leveling Device - Slitting Device - Hydraulic Post Cutting - Run Out Table
Machine componet
1) Hydraulic Decoiler:One set
Hydraulic control steel coil inner bore shrinkage and stop
Max Feeding width:1300mm,coil ID range 508mm±30mm
Capacity:Max.5 Ton
Straightening and Cut-to-length Machine
With rubber rolling feeding device,body frame made from H450 type steel by welding
Side wall thickness:T18mm
Shafts manufactured from 45# steel,Diameter=φ105mm
With shearing function
Main machine motor:7.5KW+5.5KW
With PLC control system
With slitting function(4 slitter,slitting thickness:2mm)
Line speed:15-20m/minute
Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor:5.5KW ;
Cutting tool material:Cr12MoV
PLC Control System
Control The Quantity And Cutting Length Automatically
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen ,It Can Finish The Production Automatically.
Combined With PLC, Inverter, Touch Screen, Encoder, etc
PLC Siemens (German brand)/Schneider(French brand)
Inverter Siemens (German brand)/Schneider(French brand)
7-Inch Color Touch Screen Siemens (German brand)/Schneider(French brand)
Encoder Omron (Japan brand)Switch Bottom, Indicate Light, Power Supply, Intermediate Relay, AC Contactor
Thermal Relay Siemens(German brand)/Schneider(French brand)
Air Switch LG-LS(Korea brand)
Cut-to-Length Tolerance≤±1 mm
Control Voltage 24V

After-Sale Service
1. The warranty is 24 months after the client receives the machine.
Within The 24months, we will courier the replacement parts to the client free of charge
2.We offer technical support for the entire life of our machines
3. We can send our technicians to install and train the workers in the clients' factories with extra cost
Terms Of Trade
Minimum order quantity (MOQ) 1 Set
Delivery time about 45 workdays
Port of loading port of Xiamen
Type of payment by T/T or by L/C
Export to more than 80 countries and regions, including South Korea,
Taiwan, UK, Ireland, Greece, Australia, USA, Mexico, Brazil, Russia,
Saudi Arabia, UAE, Iran , India, Singapore, Malaysia, Thailand,
Indonesia, Philippines, Vietnam, South Africa, Nigeria, Egypt, etc

Packing Style
Packing method Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),
loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
