Asia FUJI Elevator Sightseeing Elevator

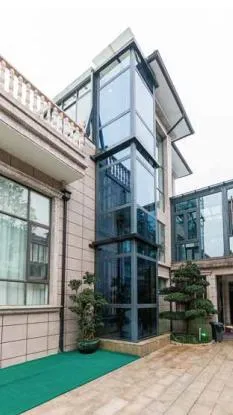

Detailed Photos
1.It blends in with the building and the surrounding environment, becoming not only a part of the building but also a beautiful moving landscape.
2.The glass steel frame structure of the sightseeing lift not only perfectly shows the compact space lines and overall beauty; it can also be designed according to different civil engineering, convenient and quick, and can generally be round, semi-circular and square.
3.The smooth and comfortable ride and the view of the outside of the building from various angles bring the user a pleasing enjoyment.
4.Widely used in all kinds of public and private buildings, such as shopping malls, hotels, office buildings, tourist attractions, high-end residential buildings, etc.
Product Parameters
Small machine-room Sightseeing elevator parameters

Capacity (Kg)	Person	Speed (m/s)	Entrance(mm)	Clear car dimension (mm)	Caroutstide dimension (mm)	Clear hoistway dimension (mm)	Machine room dimension (mm)	Pit depth (mm)	Overhead Height (mm)	Pit reaction load (KN)		Machine room reaction load(KN)		Rated power (KW)	Power supply capacity	Lead-in wire
Q	NO.	V	OP	CWXCD	SWXSD	HWXHD	MWXMDXMH	PD	OH	R1	R2	R3	R4	KW	KVA	MM2
800	10	1.0	700	1250X1600	1302X1788	2400X2080	2400X2080X2500	1950	4400	80	64	30	12	5.4	6.5	6
		1.6						2000	4550					8.6	10.3	6
		1.75						2050	4600					9.6	11.5	6
		2.0						2100	4600					11	13.2	6
1000	13	1.0	800	1350X1850	1402X2038	2500X2330	2500X2330X2500	1950	4400	96	78	34	15	6.4	7.7	6
		1.6						2000	4550					10.7	12.8	6
		1.75						2050	4600					11.7	14	6
		2.0						2100	4600					13.7	16.1	10
1250	16	1.0	900	1500X1950	1552X2138	2650X2430	2650X2430X2500	1950	4400	114	84	38	18	8.5	10.2	6
		1.6						2000	4550					13.5	16.2	10
		1.75						2050	4600					14.8	17.8	10
		2.0						2100	4600					17	20.4	10
1350	18	1.0	1000	1600X1950	1652X2138	2750X2430	2750X2430X2500	1950	4400	126	96	42	20	9.3	11.2	6
		1.6						2000	4550					14.9	17.9	10
		1.75						2050	4600					16.3	19.6	10
		2.0						2100	4600					18.7	22.4	10
1600	21	1.0	1100	1700X1950	1752X2138	2900X2430	2900X2430X2500	1950	4400	136	105	48	26	11	13.2	6
		1.6						2000	4550					17.5	21	10
		1.75						2050	4600					19	22.8	10
		2.0						2100	4600					22	26.4	10

Machine room less round or diamond sightseeing elevator parameters

Capacity (Kg)	Person	Speed (m/s)	Entrance (mm)	Clear car dimension (mm)	Car outside dimension (mm)	Clear hoistway dimension (mm)	Pit depth (mm)	Overhead Height (mm)	Pit reaction load (KN)		Load-supporting beam reaction load (KN)		Rated power (KW)	Power supply capacity	Lead-in wire
Q	NO.	V	OP	CWXCD	SWXSD	HWXHD	PD	OH	R1	R2	R3	R4	KW	KVA	MM2
800	10	1.0	700	1250X1600	1302X1788	2400X2080	1950	4400	76	60	28	12	5.4	6.5	6
		1.6					2000	4550					8.6	10.3	6
		1.75					2050	4600					9.6	11.5	6
		2.0					2100	4600					11	13.2	6
1000	13	1.0	800	1350X1850	1402X2038	2500X2330	1950	4400	90	72	32	15	6.4	7.7	6
		1.6					2000	4550					10.7	12.8	6
		1.75					2050	4600					11.7	14	6
		2.0					2100	4600					13.4	16.1	10
1250	16	1.0	900	1500X1950	1552X2138	2650X2430	1950	4400	105	80	36	18	8.5	10.2	6
		1.6					2000	4550					13.5	16.2	10
		1.75					2050	4600					14.8	17.8	10
		2.0					2100	4600					17	20.4	10
1350	18	1.0	1000	1600X1950	1652X2138	2750X2430	1950	4400	115	90	40	20	9.3	11.2	6
		1.6					2000	4550					14.9	17.9	10
		1.75					2050	4600					16.3	19.6	10
		2.0					2100	4600					18.7	22.4	10
1600	21	1.0	1100	1700X1950	1752X2138	2900X2430	1950	4400	136	105	48	26	11	13.2	6
		1.6					2000	4550					17.5	21	10
		1.75					2050	4600					19	22.8	10
		2.0					2100	4600					22	26.4	10

Company ProfileAsia FUJI Elevator (Linyi) Co., Ltd. is a joint-stock enterprise that integrates the research and development, design, production, sales and installation and maintenance of various elevators,located in Pingyi County, Linyi City, Shandong Province,which has a total area of 300 acres and a total investment of 1.3 billion yuan is a key investment attraction of Linyi City in 2015. At present, the company has obtained honors like the "National Quality Inspection Stable and Qualified Products", "National Quality and Honest Outstanding Enterprise" honor certificate and "High-tech Enterprise" and has won 11 patents in the elevator industry.
The test tower, which integrates elevator and stereo garage inspection and testing, is 159 meters high,speed up to 10m / s, and the intelligent stereo garage is 109 meters high. No. 1 test tower in North China.
Facing the new normal of the economy, Asia FUJI Elevator will develop towards high-end, intelligent, and Internet of Things.Facilitate elevators and intelligent
three-dimensional garages to upgrade their equipment, advance the manufacturing industry to cutting-edges, and quickly achieve the grand goal of "based on China, facing Asia, and going global"! In the next 5-10 years, Asia FUJI Elevator will respond to the national "One Belt and One Road" policy,take Shandong as the base, Beijing, Shanghai, Jinan, and Shenzhen as the window, and set up branches overseas and establish prodcution bases in Southeast Asia.
gradually make products to the world to achieve rapid development.Packaging & Shipping
FAQQ1.Why choose us?
A1:1.Professional technology with 23 years experiences to assure the latest elevator technology usageOur R&D engineers are awarded with national
2.technical awards by government "One Belt, One Roud " which has approved their professionalism in this field
3.The fully standard automatic production workshop can assure the precise production and high-end quality
4.Has exported elevators to over 56 countries including UAE, Africa, Australia, Brazil, USA, European, etc.
5.Listed company with over 23 years experiences in this field, and has its own professional R&D center which can innovate the latest technology for customers'the real and urgent needs.
Q2: What advantages do you have?
A2:1.National Awarded engineers in R&D and Quality Control department can guarantee that we're able to offer the high quality elevator
2.Main components of elevators are using imported highly quality-approved brands
3.Professional customization to meet your real demands
4.Latest technical innovations: healthy and Anti-epidemic function, additional safety-control
5.Professional, Systematic and timely Service TeamQ3. What information is absolutely needed before asking for price?
A3: 1. How many persons?
( 6 persons for 450kg,8 persons for 630kg, 10 persons for 800kg etc..)
2. How many floors/ stops/ doors?
3. What's the shaft size? (width by depth)
4. Is there a machine room on the top of shaft?Q4. How can we guarantee the good quality of your products?
A4 : In during the production process we will inspect all purchased and produced parts and take a record after put in crates, before shipping out we will do the final inspection and mockup the cabin and sling set, this part take photo and video as record to make customer being at ease.Q5: Whats the payment term?
A5: 1. Normally it shall be 30% of the total amount by T/T in advance before production, the balance payment of 70% shall be paid by T/T before shipment. Special terms should be in further discussion.
2.The delivery time is valid from the arrangement of 30% deposit and stamped and signed shaft layout drawing by both parties.Q6. What about the packaging?A6: All elevator parts will be packed into solid wooden cases. Some parts will be wrapped by the film so that guarantee the machinery part not be destroyed after long time transportation.Q7. How to do with the elevator installation and maintenance?A7: We have several professional team working for on-site installation locally in Ethiopia, Kenya, United Arab Emirates, etc, if you need on-site installation, we can send engineers to guide the installation and then train the workers about maintenance in the future. But in most situations, local workers can finish this work with our guidebooks and technology support, or you can ask the local professional elevator engineers to do this job, This can save much money for our customer. Of course, you can get support from our factory at any time.Q8 . What's your guarantee time?A8; We can provide 18months guarantee period, during this time, we will send free replacements to you. our service has no time limit.
