Long Arm Double Needle Cylinder Bed Unison Feed Heavy Duty Filter Bag Sewing Machine

Product Description

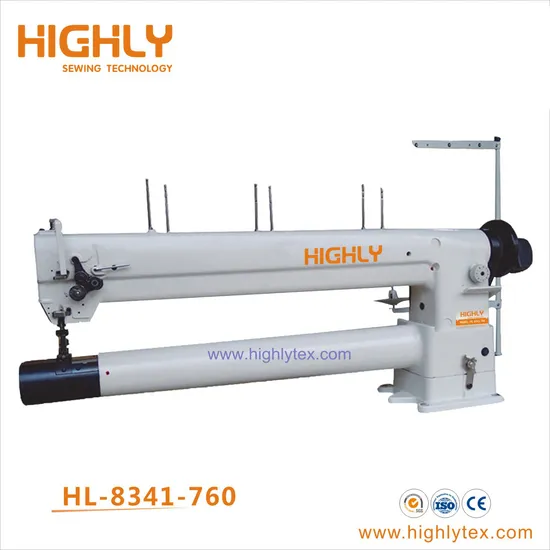

HL-8341-760 Long Arm Double Needle Cylinder Bed Unison Feed Filter Bag Sewing Machine
1. This model Long Arm Double Needle Cylinder Bed Unison Feed Extra Heavy Duty Machine, with the compound feeding of needle feed dog and presser foot prevents the slippage of materials and forms net stitch.
2. It adopt sliding thread take-up, imported vertical double rotating hook and forming two lines of lockstitch. The arm shaft and hook shaft are driven by synchrony tooth belt.
3. Knob-type stitch regulator and lever type reverse feeding mechanism permit convenient operation. And install clutch safe device to prevent the damage.
4. It is widely used in sewing tents, arch, umbrella, seat cushion, sofa etc- especially for filter bag cylindrical products.

Model		HL-8341-760 / HL-8341-254
Maximum Sewing Speed		1800rpm
Stitch Length		0-8mm
Needle Bar Stroke		33.6mm
Presser Foot Lifting		By Hand 9mm; By Knee 18mm
Needle		DY×17
Number of Needle		Double
Needle Gauge		4.8/6.4/7.9/9.5/12mm
Rotary Hook		Large vertical rotary hook
Bed Size in Diameter		90mm
Lubrication System		Manual lubrication
Motor		550W Clutch motor
Working Space		800*270mm
