ASTM D93 Flash Point by Pensky-Martens Closed Cup Tester

Product Details

Product Description

Product Description

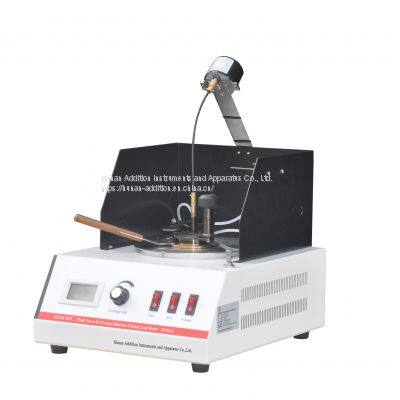

Flash Point by Pensky-Martens Closed Cup Tester ASTM D93
Product Model: JF261A
Product Introduction
This instrument is suitable for determining the closed flash point of petroleum products. The test method: the sample is heated at a very slow constant rate with continuous stirring. The flash point is the lowest temperature at which the test flame causes a vapor flashover on the sample when a small flame is introduced into the cup at specified temperature intervals while stirring is interrupted.
Technical Parameter
1. Applicable standards: ASTM D93; ISO2719; DIN51751
2. Temperature control method: solid state voltage regulator
3. Heating method: electric furnace wire heating
4. Overall power: 600W
5. Working unit: single cup
6. Working power supply: AC220V,240V/50,60Hz
7. Machine power: 800W
Main Feature
1. The temperature conduction adopts a metal bath.
2. One-piece structure, easy to operate;
3. The oil cup is made of brass, the inner diameter is Φ50.8mm, the outer diameter is Φ54.0mm, and the cup height is 58.3mm; it meets the requirements of ASTM standards;
4. The heating power can be adjusted arbitrarily;
5. There is a stirrer on the electronic heating bath;
6. Stainless steel heater;
7. The voltmeter shows the heating status;
8. The shell is made of cold-rolled steel plate, and the surface is treated with electrostatic spray, which has good rust resistance and is easy to clean;
9. The sample scale line is drawn in the oil cup to ensure the accuracy of the experiment;
10. It is very convenient to access the control box.
