Manual Cutter Precision Stone Cutting Machine for Granite Marble Slabs
Basic Info.
Model NO.
ZLQ16-2700&ZLQ16-3200&ZLQ23-3000
Type
Stone Chamfering Machine
Usage
Ceramics, Glass, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Application
Machinery & Hardware, Stone Industry
Source Voltage
380V/220V
Automation
Semi-automatic
Cutting Ability
High Speed
Control
Electric
Certification
ISO, CE
Main Motor Power
11-15kw
Water Consumption
2t/H
Head
Electrical Filp 45degree
Transport Package
Plastic Film Packaging
Specification
casting table
Trademark
ZL MACHINE
Origin
Taizhou, Zhejiang Province
HS Code
8464209000
Production Capacity
10000
Product Description
Product Parameters| Mode | ZLQ16-2700 | ZLQ16-3200 | ZLQ23-3000 | Unit |
| Worktable size | 2500*800 | 3000*800 | 2700*800 | mm |
| Head flip | electric | electric | electric | |
| Maximum Processing | 2750*1200 | 3200*1200 | 3000*1200 | mm |
| Blade diameter | 350-600 | 350-600 | 350-425 | mm |
| Main motor power | 11 | 11 | 15 | kw |
| Total power | 14 | 14 | 19 | kw |
| Dimensions | 4200*2100*1900 | 4800*2100*1900 | 4450*2100*1900 | mm |
| Water consumption | 2 | 2 | 2 | m³/h |
| Total weight | 1.35 | 1.6 | 1.4 | t |
| Price | 3000 | 3200 | 3000 | USD |
| Option:Electric table | +500 | USD | ||
Product Description

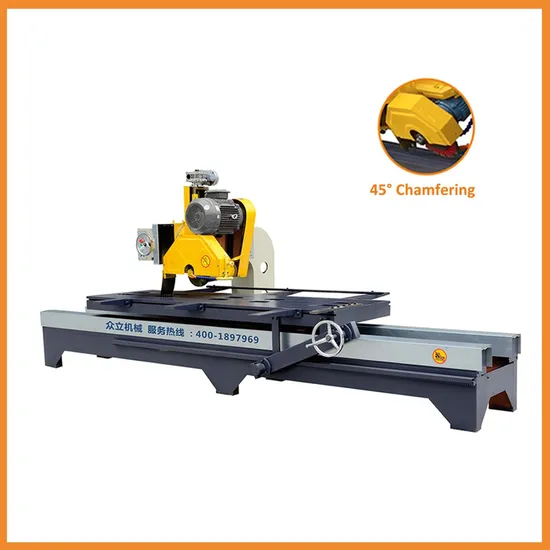

For chamfering marble, granite, and quartz stone, we supply Manual Stone Cutting Machines of the models ZLQ16-2700, 3200, and ZLQ23-3000. A simple machine, the Manual Stone Cutting Machine cuts slabs and chamfer edges. The table is moved by hand, and the chamfering head is turned by a motor. Casting worktables will be used for long-lasting Everyone can use the machine simply.
option: electric table
We also provide OEM/ODM production machine service.
Packaging & Shipping
Company Profile
Certifications
