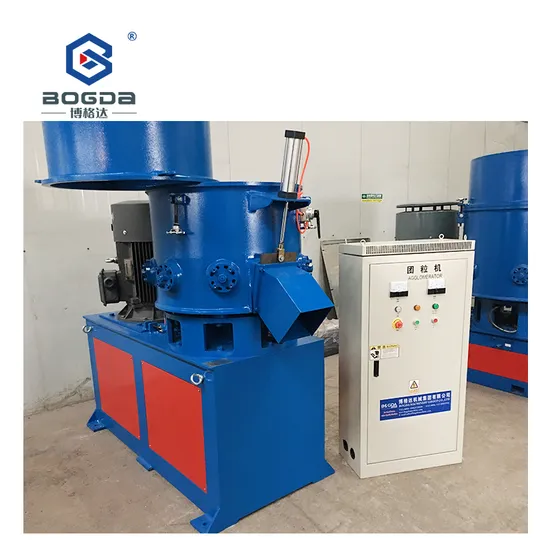

Bogda Semi Automatic Agglomerator Machine Plastic Densifier

Product Description

Why Choose BOGDA?
1. Bogda uses internationally renowned brand motors and appliances for customers to buy locally.
2. Bogda can do plant planning for customers and maximize benefits with minimal cost.
3. Bogda adopts special screw, long life, high plasticization.
4. Bogda machinery high degree of automation, low energy consumption, high output.
5. Bogda equipment design is reasonable, installation and disassembly is simple and convenient.
6. Once the customer has any problem in installing and operating the machinery, Bogda will arrange corresponding technicians to provide online video guidance for the customer in the shortest time or go to the customer's factory to solve the problem if the government policy allows.
Product Description
Plastic Film Agglomerator Pelletizer
1. When the waste plastic is supplied into the chamber of such machine, it will be cut into smaller chips due to the crushing function of the rotating knife and fixed knife.
2. During the crushing processing, the material that soaked up lots heat from the frictional movement of material being crushing and the wall of container will be going to become semi-plasticizing state. The particles will stick with each other due to the function of plasticization.
3. Before it sticks each other completely, the cold water pre-prepared is sprayed into the material being crushed. The water will be evaporated off quickly and the surface temperature of material being crushed drop down quickly also. So the material being crushed will become small particles or granules.
4. It is easy to recognize the particles by different size and can be colored by using of color agent being putted into the container during the crushing processing.
Electrical box for PE PP Plastic Film Agglomerator for granules making machine, with electric safety identification. Electric brand: SIEMENS DELIXI.
5. Inner Blade for PE PP Plastic Film Agglomerator for granules making machine.
1). Material of knife: 9Crsi
2). 2PCS rotatory knife + 8PCS fixed knife
3). Special rotatory knife plate for increase the output
Product Parameters

BOGDA Plastic Recycling Pellet Making Machine PP Woven Bag Agglomerator Price
GSL-100 GSL-200 GSL-300 GSL-500 GSL-600 GSL-800 Volume(L) 100 200 300 500 600 800 Effective Volume(L) 75 150 225 375 450 600 Output(kg/h) 100 150 200 300 400 550 Motor Power(kw) 37 45 75 90 110 110 Rotatory Blade(pcs) 2 2 2 4 4 4 Fixed Blade(pcs) 6 6 8 8 8 8 Heating Method By self-friction Discharge Method Manually or Pneumatic

Production Application
1. PE PP Plastic Film Agglomerator for granules making machine into agglomerator granules. Plastic Agglomerator will be recycling a waste of the plastic film and wall thickness of less than 2 millimeters products direct granulation equipments.
2. PE PP Plastic Film Agglomerator for granules making machine, high-low pressure polyethylene , polystyrene thermoplastic polypropylene plastics and other waste [roducts, or the film, also be of granulation for be abandoned polystyrene foam products.
3. PE PP Plastic Film Agglomerator for granules making machine, the main shaft is metal processed after being heat-treated and adjusted straight and this machine is of low noise but high ouput, with the removable blade as the fixed blade, resulting in convenient repair and maintenance.
Before Crushing
After Crushing

Certifications

Packaging & Shipping

Company Profile
BOGDA Machinery Group is a high-tech and innovative company dedicated to the research and development and manufacturing of plastic extrusion molding equipment. Deeply trusted and praised by customers, BOGDA company has many subsidiaries such as plastic pipes equipment, sheet/board/film intelligent equipment, intelligent automation equipment, and granulation equipment. We are familiar with kinds of plastic raw materials to help you choose the most suitable machine on best quality by economically. Leading technology and excellent quality have been highly recognized by authoritative departments and markets. Products are exported to more than 110 countries and regions such as Europe, America, the Middle East, Southeast Asia, South America, Russia, Turkey, Italy, Poland, Brazil, Romania, etc. The company has a high-quality talent R&D team and more than 20 years of experience in the industry. A team of mechanical and electrical commissioning engineers, as well as an advanced machining base and a standardized assembly workshop. More than 600 sets of high-end plastic extrusion lines are produced every year.
BOGDA has advanced design concepts in the extrusion field, strives for perfection in product quality, and continues to improve in technology. It can provide customized solutions for each customer to meet the different needs of customers. Project planning, product positioning, plant planning, equipment installation and commissioning, customer staff training, equipment after-sales maintenance and other all-round services. Our advantage is to provide customers with desired, satisfactory, and high-quality products to help customers create the greatest Profits and business opportunities, customer success is our ultimate goal.

FAQ
1. How many electric, water, air need for the machines?BOGDA: technical department supply the whole layout for workshop details.2. Can I operate machine if don't have experienced engineers?BOGDA: (1) short-time engineers to customer company (5-15days) (2) Year-time working as requirements3. Any quality checking before shipment?BOGDA: 100% confirm, run and test machines before shipment with quality certificate.4. How long is the guarantee?BOGDA: 12 months since the first day customer operates (except wear parts)5. How can u help us when face some technical problem?BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks. 6. Where can we get spare part? BOGDA: we choose International Brand that customer can find it in everywhere, such as Siemens, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
