Torque Rheometer For Plastic And Rubber Testing

Product Description

Product Description

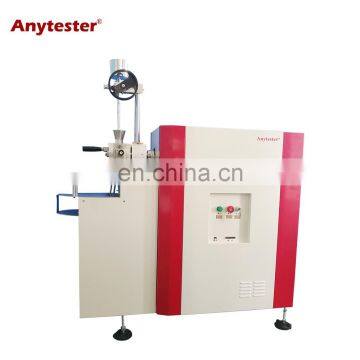

Product DescriptionAT400 Torque Rheometer is a measuring system for studying the flow, plasticizing, heat and shear stability of polymers. This system consists of a platform and some function units, such as the mixer and single-screw or twin-screw extruder. The platform connected with a function unit can measure flow and compounding behaviors, critical processing parameters of temperature, pressure, torque and viscosity of polymers in the laboratory-requiring only small sample volume. Designed to an excellent system with high measuring precision, handling flexibility and testing reproducibility, this instrument has been widely applicable in science research, quality control and process experiment. The whole system is as follows: Specification for platform Motor Panasonic Servo Motor & Driver, 3.0kw Speed range 0.1~200rpm Speed accuracy 0.05%F.S. Torque 0~300Nm Torque accuracy 0.1%F.S. Melt pressure range 0.1~100MPa Melt pressure accuracy 0.5%F.S. Temperature range 0~350℃ Temperature accuracy ±1℃ Temperature channel 5 (4 channels for controlling temperature) Power supply 3phase, AC380V, 50Hz, 30ADetails & FeaturesRotors Banbury, Cam or Delta optional Mixer with the simplified structureInterface of Platform SoftwareTest reportOur CompanyHistorySince 1982 with more than 20 years' experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertificationsPacking & Delivery Packaging Size 215 (L) * 73 (W) * 135 (D) Weight 408Kg Packaging Details 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. Payment Payment Term T/T EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance, paid the balance against copy of B/L CIF L/C L/C amount above 50,000 usd, we can accept L/C at sight West Union Amount lower than 5000usd West Union Delivery Time 7~10days after receiving payment for one containerRelated Products HY4310C Melt Flow Index Tester HY4252D Izod Impact Tester AT403 Sample Notcher
