Houseng Roll to Sheet Paper Sheeting Machine Kraft Paper/Paperboard/Grey Paper Cut by Rotary Paper Reel to Sheet Cutting Machine

Product Description

Yes ,for double rotary knife sheet cutting machine (Synchronic Rotary Sheet Cutter), and use 3 sets servo motor ,
Mainly cut thick paper ,and the sheets no dust , Can be directly on the printing press .The future market trend is to use this machine. Save cost and improve effect. Save paper waste .
Because we have 23 years of focus, so we have the current specialty, everything is in order to when you need a paper cutting machine.
Description: 1.HSC-S series double knife sheeter adopts advanced design of synchronic rotary which are driven directly by high power AC servo motor with high accuracy and clean cut.
2.And using our patent with embedded cutting head design,that its cutting cross profile is straight and not pulling out fibers, this is key point to eliminate hairs of paper. Widely used for cutting cardboard,coated paper ,Kraft paper,culture paper ,art paper, duplex,packaging paper etc up to 1000gsm.
3.HOUSENG machine is dedicated to produce sheet cutter , Products are well used and verified by almost all top cosmetics and pharmaceutical packaging customers, and promise their is no risk for long term running of your products in future. Consider this kind of machine to improve quality and save cost, To improve efficiency .
Application: Cutting reel (roll paper) into sheets
Technicals:
According to HOUSENG MACHINE, are mainly used for paper cutting in Paper Mill, Printing House and etc.
Mainly process including: Unwinding-Feeding-Cutting-Conveying-Collecting .
Features:

Cutting Unit The double KNIFE cutting unit has a synchronic rotary cutting knife like scissors on the material to make a smooth and accurate cutting for paper from 150gsm and up to 1000gsm.The knife roller is using the most powerful driver from UK CT. Precision rotary sheeter groove is processed by imported advance processing center with high accuracy and stability, High quality gear box ,using no clearance design gear. which guarantees the stability of the tool body during high-speed operation, completely solve the problem of scratches and light spots, after cutting the edge is neat and smooth, clean cut.
	Double Arm Unwind stand with web tension controls and pneumatic brake units. Adopt Italian RE control system and pneumatic components are adopted to guarantee the stable operation of the brake control system and the accuracy of every aerodynamic action.
Three sets of MAXCESS pneumatic slitting knife ensure stable and clean slitting . High rigid tool post article can be applied to 400cut/min speed environment, improve the production efficiency and ensure the material quality stability.

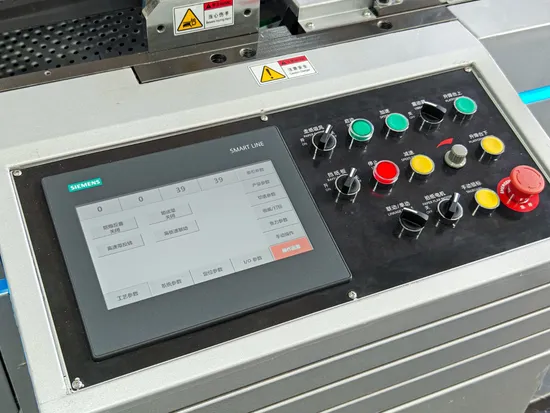

	Electric control part Adopt German imports of Siemens PLC and UK OF CT servo drive control system, make the operation more convenient, automation, cutting length, number and the total number of finished products, etc., can be directly in touch screen input. High efficiency and energy saving of high power CT servo drive rotary knife shaft, and cooperate with the energy storage tank, effectively reduce electricity consumption, improve the efficiency, reduce the production cost.
Transportation parts Patent device-A precision structure can adjust the synchronous deceleration wheel, easy to operate, it is effective to protect surface of paper, so there will be no scratching on surface, and also will not have the facula whenever speed is high or low .
	The delivery section using automatic set paper equipment (Jogger and vibrating devices) Lift stacked set paper , the paper stack to a considerable height, which is automatically dropped. The stacker table has three sides shake finishing functions, and 1 unit Fixed plate which are vibrating and positioned laterally to each pallet, while in front of the pallet there is a jogger. 2 side plates are placed on a traversal support and can be positioned where necessary. the side of the motor to drive the paper on both sides by high-quality pneumatic by hand wheel to adjust the amplitude of the paper to improve the simplicity and safety of the operation.
Reject Gate In the end of the first conveyor belt is placed a sheet rejecting device, which can be inserted by the operator in the starting phase for the first sheets. The start of rejecting device is manual by pushing the ON.OFF button to act the air cylinder of reject gate.
	The new Anti curvature device (2 set de-curl ) Effectively remove the curl of the roll to make the paper more flat, more conducive the paper roll tension stability.

Main Technical Parameter

Model	HSC-1500S/1700S/1900S
Type of cutting	Twin knife, Top blade and bottom blade rotary cutting
Paper weight range	150-1000 GSM
Reel stand load capacity:	2.5T (option 3T-4T)
Reel diameter	Max 1800mm (71")
Cutting Width	Max 1500/1700/1900mm (66.9")
Cut off length range	Min.400-Max.1650 mm
Cutting accuracy	±0.15mm
Max. Speed of cutting	400cuts/min
Max. Cutting speed	300meter/min
Delivery height	1700mm(incl.pallet)
Voltage	AC380V/220Vx50Hz 3ph or customized
Total power	107kw
Output	The real output depends on the material, and the weight of the paper, and right operate process

About US:

ZHEJIANG HAOSHENG PRINTING MACHINERY CO.,LTD. HOUSENG is a leading company in china to produce sell sheet cutting machine /reel to sheet paper ,HOUSENG on extensive experience and fast develop speed in this field. Start from 2001, high performance models have evolved thanks to the commitment and know-how of our employees, intensive research and development, and the steady exchange with our customers on their needs and ideas . In the light of such policies as adapting to market demands ,basing on science and technology and seeking market share through quality ,HOUSENG aims to reduce cost and market competition ,provide better services for customer at home and abroad, and enable customers to obtain greater benefits.

Why Choose Us 1. Quality Warranty
One Year WarrantyWe PromiseCommissioning services: Product arrived on site, Our Technical Staff Will Guide you to Finish installation,commissioning, andtraining How to operations Until you get it (Installation charge, buyer responsible)
2. Training Services
We will provided a comprehensive technical training if necessary Training Include as following:(1) Normal operating procedures for equipment training.(2) Knowledge of routine maintenance on equipment training.(3) Introduction of the equipment and service solutions for training.
3. Lifetime Service
Warranty expires, we will provide life-long service to all customers on a regular basis to provide equipmentupgrades and maintenance services.
4. Archives Service
After execution of the contract, we will establishment of archives, including the sale contract,the technical parameters,commissioning acceptance of a single report,the relevant technical drawings.
FAQ
1. Are you a factory or trading company?We are an actual factory and manufacturer with trading in the line of paper cutting machines, slitting machines for more than 10 years.2. Where is your factory located? How can I visit there?Our factory is located in Ruian City, Zhejiang Province, China,
less than one hour by air from Shanghai. All our clients from home or abroad, are warming welcome to visit us!
3. What about your payment term?
For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
4. Where is your main market?
Our productts are sold well in 30 provinces and have good reputation in China, we pay attention to developing the overseas market, such as Europe, Russia, Southeast Asia, Middle and South America, Africa, and other countries all over the world.
5. How dose your factory do regarding quality control?
Quality is our soul of company. Our people always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed CE certification. 6. What about warranty and do the engineers available to over seas? One year warranty. During this period, if some parts were problem, we will send by courier to you. 7. What about the after sales service? We provide the whole life after sales service. Even after one year warranty, we support the spare partts price without benefit.
