LLDPE Film PP Foil PE PP Sheet LDPE PP Bag Plastic LLDPE Film Washing Recycling Fully Automatic Control Washing Line LLDPE LDPE Film Bag Recycle Washing Machine

Product Description

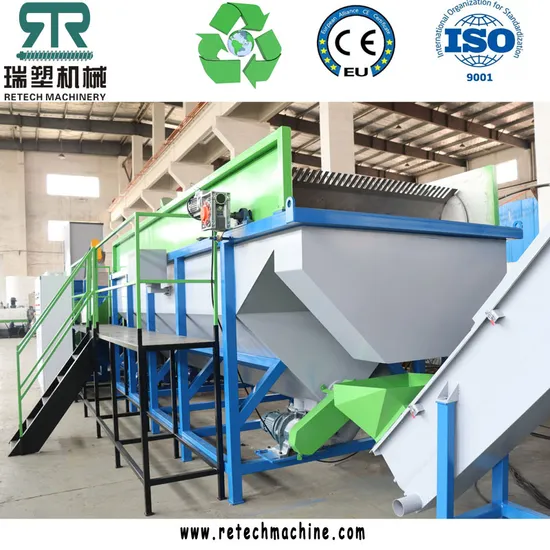

LLDPE PP Foil/ PE PP Sheet/ LDPE PP Bag/ Plastic LLDPE Film Washing Recycling Machinery Plant
Product Description
1. The main material is LDPE agriculture film, HDPE bags, shopping bags, beverage bags, PP woven bags, and some other soft material etc…
2. The main process of the washing line is crushing, washing, squeezing drying parts.
3. The capacity of the washing line is from 300kg/h to 2000kg/h.
4. There crusher is to crush the film and woven bags to small pieces with size 60mm to 100mm.
5. Cold water sinking swimming tank can wash the common dirties, like the soil, sand, earth, stone, glass out.
6. High speed friction washer and hot sinking swimming tank can remove the strong dirties, like the grease, oil, glue.
7. With big capacity, double drying system can ensure the final products, PE PP flakes moisture lower than 1%.
8. With squeezing machine, the moisture level of PE PP flakes can be lower than 3%.
9. Final PP PE flakes can be taken directly to the granulation/pelletizing line to make granules/pellets.
Features
1. Final products has good quality. When process PP PE film bags, final products humidity below 2%.
2. The machine with high efficiency, working stable, large capacity etc.
3. Parts which contact material use SUS304, thickness more than 3mm, ensure long service life time.
4. World famous brand components applied on the production line
5. The whole production line with CE certification, ISO9001 certification .
Detailed Photos
Product Parameters

Model	Capacity(kg/hr)	Power Consumption	Water Consumption	Man Power	Humidity Content
RM300	300kg/hour	125KW	2-3 ton/hour	1-2	<3%
RM500	500kg/hour	260KW	4-5 ton/hour	1-2	<3%
RM1000	1000kg/hour	350KW	6-8 ton/hour	2-3	<3%
RM2000	2000kg/hour	480KW	10-12 ton/hour	3-4	<3%

Certifications
Packaging & Shipping
Working Flow:
Belt conveyor → Shredder → belt conveyor(metal detector for selection) → Crusher →Screw friction washer →Washer tank →Screw friction washer → Washing tank→ Screw conveyor → Squeezer machine (with silo) →Control cabinet
Our Advantages
After Sales Service
Q&A about recycling machines:
1. What is the function of the PE PP film washing recycling machines?
The PE PP film washing recycling machinery is used to recycle and process the PE agriculture film, PE bags, shopping bags, beverage bags, PP woven bags, and some other soft material etc…
2. Where does it collect the waste material for the PE PP film washing recycling machines?
The waste mater is gotten mainly from agriculture film, city rubbish and plant in bale package or separated. They are with much dirties, such as the earth, soil, sand, stone, glue, grass, oil, and some other dirties.
But by our many years experience to manufacture the washing line, we can promise to wash the material clean enough to take the washed material into the extruder to make granules. We have our special design to guarantee this point.
3. What are main parts of the PE PP film washing recycling machines?
The following is a standard structure of the PE PP film washing recycling machinery:
Belt conveyer--- crusher with water--- screw conveyer--- floating washer--- screw conveyer--- high speed friction washer--- high speed friction washer--- screw conveyer--- horizontal centrifugal dewatering machine (or squeezer)--- drying system 1--- transition hopper--- drying system 2--- storage silo--- operating panel
The up is a standard structure of the line, we can adjust it to remove some parts or add some parts due to the situation of the material or customers' requirements.
4. What capacity of the PE PP film washing recycling machinery?
300-1000kg/h for single washing line
5. What power of the PE PP film washing recycling machines?
150kw~480kw
6. How much water does it need of the PE PP film washing recycling machines?
3~8T per hour
7. How large space does it need for a PE PP film washing recycling machines?
100~400 square meters, the whole line could be installed by straight, "L" shape or "U" shape. We could design how to instal the machines due to the space of your factory.
8. What is the condition of the final products from the PE PP film washing recycling machines?
The size of final flakes will be 50~100mm, and final moisture level of film flakes will be lower than 5%.
The PP PE flakes can be taken directly to the granulating/pelletizing line to make granules/pellets.
9. What is material of the PE PP film washing recycling machines?
The parts contacted with water are made of stainless steel SUS 304 or customized.
10. What certifications do you have for the PE PP film washing recycling machines?
We have CE and ISO9001 certification for the entire PE PP film washing recycling machines.
