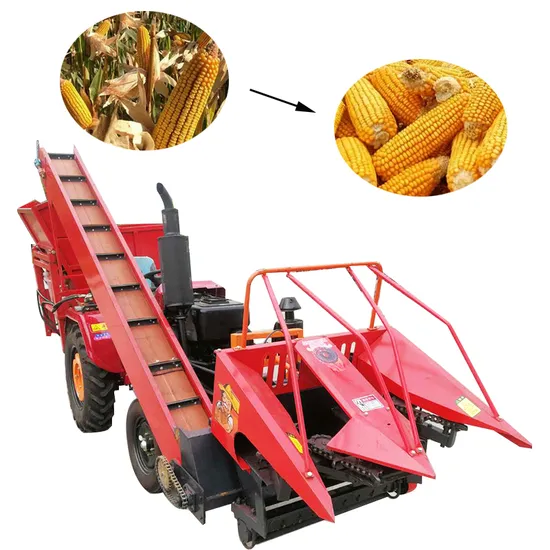

Agricultural Machinery Maize Harvester Machine for Tractor

Product Description

Product Description
The knapsack harvester adopts a low-vibration engine and advanced vibration-reducing and vibration-isolating devices and reasonably configures parts to reduce the harm of vibration to the human body; improves the processing and assembly precision of the machine, improves the suction and exhaust system, and reduces noise; A protective device is installed to improve workability; a shrub cutting device is added to the suspended brush cutter to simplify the cleaning process of cutting shrubs. Harvesting in full-width non-aligned rows is not limited by planting row spacing, and manual clearing is not required, which can easily meet the requirements of cross-regional operations.
The corn harvester adopts double hydraulic cylinder rotary lifting header, which has stable lifting, small inclination angle, good field passability, low stubble cutting, and can harvest corn varieties with low ear height. And adopt QB new type hydraulic operation valve, the performance is more stable. The chain-type transmission mechanism has low power loss, which saves tedious maintenance time and cost, increases pure working efficiency and improves revenue. The ear picking device adopts advanced roller mechanism, which is stable and reliable, with high cleanliness and small loss. The protective cover of the model adopts baking varnish technology, which has bright colors and long corrosion resistance. Double oil cylinders are used for high-level unloading of grain, large volume and no need for frequent unloading of grain, which meets the requirements of long-distance operation. The speed of unloading grain is fast, and it can be directly unloaded on the agricultural transport vehicle, saving time and effort. It can be equipped with a four-wheel drive tractor model, and a peeling machine is optional.
The combine corn harvester is multi-purpose, portable and flexible. The machine is used in conjunction with a small tractor, and the tractor can be used for other operations when the unit is unloaded; the work efficiency is high, and it can harvest 3-5 acres per hour; the unit is energy-saving and can be easily operated with only 18-25 horsepower; At the same time, the ears of corn can also chop the corn stalks to achieve the purpose of returning the stalks to the field
Product Parameters

Model	4YB-2
Dimension(mm)	4500*1300*2650
Machine type	Tractor Mounted corn harvester
Matching power(Hp)	More than 20
Harvesting rows	2
Working width	rows width 40-80cm
Efficiency	4-6mu/h
Loss rate	<3%
Broken rate	<1%
Box volume	0.96
Packing dimension(mm)	1600*1700*1500,430*3960*500,970*1400*1510
Self-weight	800kg
