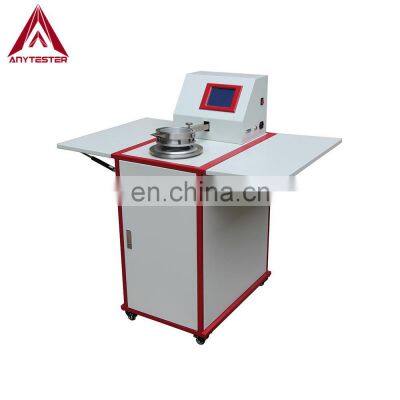

Touch Screen Control Textile Fabric Air Permeability Tester ISO 9237

Product Description

Product Description
Product DescriptionHY0461D Air Permeability Tester is used to determine the resistance of fabrics (woven, knitted and nonwoven textile materials) to the passage of air (air flow) under constant pre-set air pressure while firmly clamped in the test rig of selected test head.SpecificationISO 9237, 7231, 5636ASTM D737BS 5636DIN 53887JIS L1096GB/T 5453, 13764ModelHY0461DPerforated plateManualMeasuring range0.1~12000mm/s(L/m2.s)Unitsmm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.sMeasuring accuracy≤±2%Test pressure1 ~ 4000Pa Test area/test rig20cm2 (5cm2, 20cm2(≈Φ50mm), 25cm2, 38cm2(≈Φ70mm),50cm2, 100cm2 optional) Perforated plateΦ0.8mm, Φ1.2mm, Φ2.0mm, Φ3.0mm, Φ4.0mm, Φ6.0mm, Φ8.0mm, Φ10.0mm, Φ12.0mm, Φ16.0mm, Φ20.0mmSpecimen thickness≤12mmPower supplyAC220V±10%, 50HzPower2KWDimensions1070×670×1080mmWeight75kgDetails★ Touch screen control, LCD display★ Professional software on PC for online operate★ Adopt high precision low pressure difference sensor, more accurate★ Easy to operate, no need to cut sample★ Provided with 11 pcs of perforated plate to determine different textile★ 7 units selectable, mm/s, m3/m2.min, cm3/cm2.s, m3/m2.h, cfm, L/dm2.min, L/m2.s★ Several test heads can be selected, the standard configuration is 20m2★ Chinese and English display language selectable★ Modified mechanical process, it’s more beautiful and durable.Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingSize1070*670*1080mmWeight75KGPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
