FINMC CNC Angle Steel Line Automatic Shearing Marking Punching Machine For Communication Tower Line

Product Description

Product Description

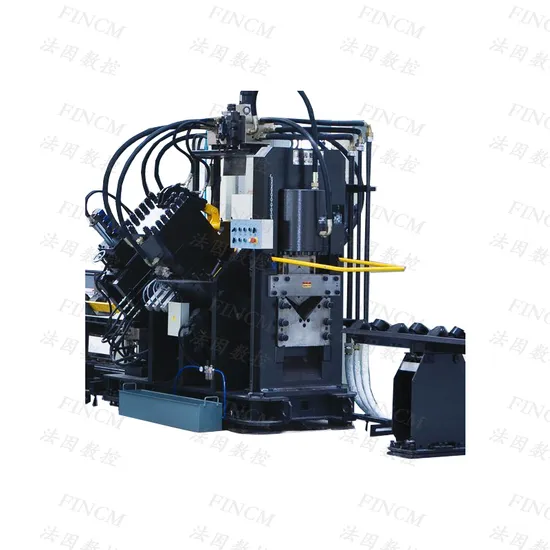

BL1412C FINCM Tower Fabrication Plate Automatic Making Drillig Punching Line CNC Machine
It is mainly used for customers to manufacture angle steel components, complete typing, punching, fixed length cutting on angle steel. Simple operation, high production efficiency.

Technical specification of BL1412C

Model	BL1412C
Angle Size	40x40x3mm~140x140x12mm(Q345)
Max. workpiece length	12m
Max. punching capacity(DxT)	Φ25.5mm x12mm
Nominal punching force	1030KN
Nominal marking force	540KN
Nominal cutting force	750KN
No. of character group	4pcs
No. of character in each character group	18pcs
Character size	14x10x19mm
Range of stadia	20~170mm(stepless)
No. of punch on each side	3pcs
Max. feeding speed	40m/min
No. of CNC axes	3pcs
Overall size	25.4x7x2.2m
Total power	31.4KW
Machine weight	Approx. 15000kg

Angle feeding Speed: 40m/min, the effiency is about 1000 holes/hour
The finished angle conveyor is rotated to one side by pneumatic power. The max. Length of finished angle is 8 m.
There are four transverse conveyors which can infeed automatically.
Type of programming: Keyboard input, USB interface input, floppy disc input.
Working environment:
Working temperature: 0~ 40 degree
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ± 10%
Frequency: 50 Hz
Main outsourcing components list of BL1412C:

No	Name	Brand	Manufacture
1	AC servo motor	DELTA	Taiwan China
2	PLC	DELTA	Taiwan China
3	Electromagnetic relief valve	Atos/Yuken	Italy/Japan
4	Relief valve	Atos/Yuken	Italy/Japan
5	Electromagnetic relief valve	Atos/Yuken	Italy/Japan
6	Electromagnetic exchange valve	Justmark	Taiwan China
7	Electro-hydraulic exchange value	Justmark	Taiwan China
8	Check valve	Justmark	Taiwan China
9	Double vane pump	Albert	America
10	Air valve	Airtac	Taiwan China
11	Manifold	Airtac	Taiwan China
12	Cylinder	SMC	Japan
13	Computer	Lenovo	China
14	Pneumatic duplex	SMC	Japan

Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
