CNC Mismatch Machine Nz-50 Five-Axis Four-Linkage High Precision CNC Step Grinding Machine Good Price
Basic Info.
Model NO.
NZ-50
Type
Tool Grinding Machine
Processing Object
Carbon Steel + Tungsten Steel Alloy Drill Bit
Abrasives
Carbon Steel + Tungsten Steel Alloy Drill Bit
Controlling Mode
CNC
Automatic Grade
Automatic
Cylindrical Grinder Type
CNC Cutting Tools Grinder
Precision
High Precision
Certification
CE, ISO 9001, ISO 9001
Condition
New, New
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Contour Control
Control Method
Open-Loop Control
Numerical Control
CNC/Mnc
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
After-Sales Service
10
Power
30kw
Machine Weight
5000kg
Voltage
380V
Stepless Adjustable
Inverter
Maximum Blade Length for Grinding
200
Transport Package
Wood Case
Specification
NZ-50
Trademark
Naseiko
Origin
China
Production Capacity
10000PCS/Year
Product Description
Detailed PhotosProduct Description

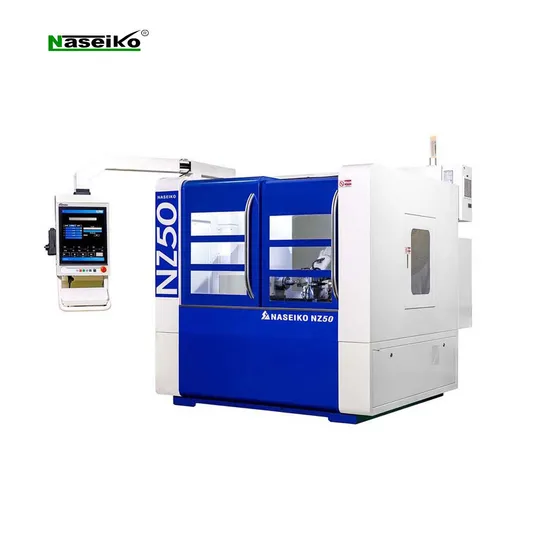

NZ-50 5 axis 4 linkage CNC grinder
1.1 X axis, horizontal straight CNC axis, Australia Anca servo motor, THK precision
ball leadscrew, THK precision roller guide rail.
1.2 Y axis, horizontal linear CNC axis, Australia Anca servo motor, THK precision
ball leadscrew, THK precision roller guide rail.
1.3 Z axis, horizontal straight CNC axis, Australia Anca servo motor, THK precision
ball leadscrew, THK precision roller guide rail.
1.4 V axis, horizontal straight CNC axis, Australia Anca servo motor, THK precision
ball leadscrew, THK precision roller guide rail.
1.5 C axis: infinite rotation, speed: 0 ~ 3000 RPM,.
1.6 High precision imported universal probe (probe: workpiece detection).
1.7 Overall marble bed body.
1.8 Seal machine cover, imported acrylic double door, convenient operation
and maintenance.
12
1.9 Mobile hand pulse with magnet for easy operation.
1 .10 Special permanent magnet electric spindle, the grinding wheel
flange can be dismantled to the grinding wheel dressing machine
to repair the grinding wheel.
1.11 Install pipe sealed oil-proof LED lamp in the machine.
Guide rail
Japan THK P level
Leadscrew
Japan THK C3
Main axis (coarse grinding)
Taiwan (Weihong)
Spindle (fine grinding)
Taiwan (Weihong)
Servo motor
Anca Servo (Absolute)
Numerical control system
Australia (ANCA)
Software
Australia (ANCA
Software)
Probe
High precision (universal) Product Parameters
