Advanced Plastic Grinding and Milling Machine for PVC, PP, PE

Product Description

Applications:One of the main fields of use for the SMP plastic milling machine is the pulverization of PVC regrind in pipe and profile recycling. Working in line with a shredder and granulator to have a balanced and efficient system to handle in-house production waste. Another application is the grinding of PE for Rotomolding applications, here the PM Pulverizer is used in the production process to create the powder needed in the process. In this process, a screening machine is necessary to ensure the right output size, distribution, and flow properties of the ground material.
Technical Specifications:

Model	SMP-300	SMP-400	SMP-500	SMP-600	SMP-800
Disc Diameter(mm)	300mm	400mm	500mm	600mm	800mm
Dimension L*W*H(mm)	3700*1500*3700	3800*1600*3800	3900*1700*3900	4000*1800*4000	4300*1900*4300
Main Motor(kw)	11-15	22-30	30-37	45-55	75-90
Air Blower(kw)	3	4	5.5	5.5	7.5
Vibrating Motor (kw)	0.55	0.55	0.75	1.1	1.1
Capacity (kg/h)	30-50	50-120	120-200	200-350	400-600

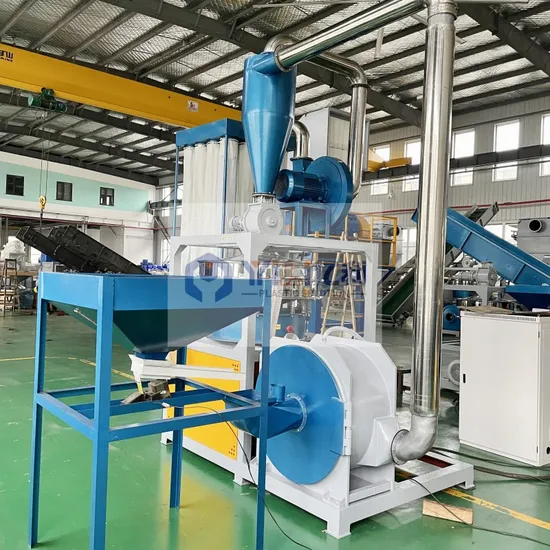

General descriptionThe Waste Plastic Pulverizer Machines are available with a disc diameter from 300 to 800 mm. These plastic pulverizer machines are high speed, precision grinders for the processing of medium-hard, impact-resistant, and friable materials. The material to be pulverized is introduced through the center of a vertically fixed grinding disc which is mounted concentrically with an identical high speed rotating disc. Centrifugal force carries the material through the grinding area and the resulting powder is collected with a blower and cyclone system. Depending on the application the machines can be equipped with one-piece grinding discs or grinding segments. Technical Features: 1. The new disc design is with high quality, strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings are with a high rotation rate. At the same time using only one drive motor, to ensure the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging, and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge and adjust bolts can be fine-tuning.
7. The mill uses the water and wind double cooling system.
8. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.
Advantages: Simple adjustment of cutting gap
Choice of discs or segments
Low drive power - High throughput
Innovative efficient design
Wide range of accessories
Easy temperature control
