Screen Printing Machine

Product Description

TC-105

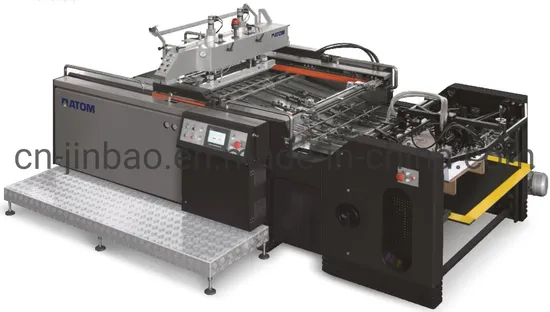

Automatic Stop Cylinder Screen Press
TC-105 Automatic stop cylinder screen press is the new model,which basic on our introduced advanced design and manufacturing technology,combined with the German and Japanese technology, and our own patented technology.
Adopt the classic stop cylinder technology,assembled with heavy-duty pneumatic squeegee system.Suitable for ceramic and glass decals, advertising, packaging, printing, labels, textile transfer, and electronics industries' screen printing.
Main Feature: Machine frame with precision works and casting It adopts gray cast iron(HT250),found by polyester sand pattern,aging treatment,completed a one-time processing by imported vertical type CNC,deformation little,guarantee of accuracy,ensure the long-term stable operation.
2.Opened loading board
Completed lifting steel loading board of feeder,can pull the sheet pile directly ,load sheet more easily and save operation time.
3.Heavy pneumatic squeegee system
Integrated application of electrical,pneumatic,hydraulic technology,automatic control the squeegee movement;The start printing point and end point can be set independently;the entire pressure equilibrium stability;Completely eliminates the disadvantages of the squeegee movement controlled by mechanical cam,to ensure the ink layer and definition of image constant stable whether any printing and printing speed.
4.Separated screen frame structure
Screen frame can break away from transmission part and be pulled out,it's easy for adjusting the registration and feeding;meanwhile it is must safer and faster for cleaning for cylinder and screen;Opto sensors automatic detection system to ensure the reliability of the action and avoid rack breakage or damage of main drive.

Main parameter:

	TC-105
Max.sheet size	1050×750 mm
Min.sheet size	560×350 mm
Max.printing size	1050×750 mm
Max.frame size	1300×1170 mm
Sheet thickness	90~420 gsm
Printing speed	800-4200 pcs/h
Installed power	3P 380V 50Hz 10.7 Kw
Weight	5700kg
Dimensions	3760x3220x2080mm

Standard device :
Conveyor belt timely slow down device.Ensure material convey to cylinder position stably under fast speed. Two suck two feeding offset feeder Opened loading board German Becker pump Vacuum conveying system. Outside adjustable pull/push side-lay system,One structure with pull and push function. Sid-lay sensor Front-lay sensor.Standard with two sensors,can be more by customized. Heavy pneumatic squeegee system.Make printing pressure more equal,to get high precision printing jobs. Ink-dropping device Automatic lubrication system Screen frame taken out structure Touch screen controller.With OMRON 7" big screen,easy to be operated by touch screen.
TC-105 Configuration list

NO.	NAME	QTY	BRAND	REMARK
1	MAIN MOTOR	1	HAIGUANG	CHINA
2	FEEDER LIFTING MOTOR	1	CPG	TAIWAN CHINA
3	PUMP FOR FEEDER AND CYLINDER	1	BECKER	GERMANY
4	FEEDING BOARD FAN	3	GELING	CHINA
5	DELIVERY BOARD FAN	1	CPG	TAIWAN CHINA
6	SQUEEGEE FINE TUNING MOTOR	2	DUNKER MOTOREN	TAIWAN CHINA
7	MOTION CONTROLLER	1	BOSCH REXROTH	GERMANY
8	CONTROLLER EXTENSION MODULE	5	BOSCH REXROTH	GERMANY
9	INVERTER(FREQUENCY CONVERTER)	1	SCHNEIDER	FRANCE
10	TOUCH SCREEN	1	SCHNEIDER	FRANCE
11	AC CONTACTOR	5	SCHNEIDER	FRANCE
12	MOTOR PROTECTOR	3	SCHNEIDER	FRANCE
13	FEEDER LIFTING INVERTER	1	MITSUBISHI	JAPAN
14	DELIVERY BOARD COVEYING INVERTER	1	MISUBISHI	JAPAN
15	ENCODER	1	OMRON	JAPAN
16	OPTO FIBER AND SENSOR	7	OMRON	JAPAN
17	INDUCTION/INCH SWITCH	5	OMRON	JAPAN
18	BUTTON SWITCH	26	EATON MOELLER	GERMANY
19	BREAKER	3	EATON MOELLER	GERMANY
20	POWER SWITCH	1	EATON MOELLER	GERMANY
21	OPTOCOUPLER MICRO RELAY	13	FINDER	ITALY
22	MICRO RELAY	6	FINDER	ITALY
23	SOLENOID VALVE	6	FESTO	GERMANY
24	CYLINDER	6	FESTO	GERMANY
25	CYLINDER	9	SMC	JAPAN
26	SOLENOID VALVE	4	SMC	JAPAN
27	PNEUMATIC DIS BRAKE	1	YUSHIN	JAPAN
28	FEEDER LIFTING REDUCER	1	SUNCARVE	CHINA
29	PRINTING GUIDE ROD/SLIDE BLOCK	3SET	THK	JAPAN
