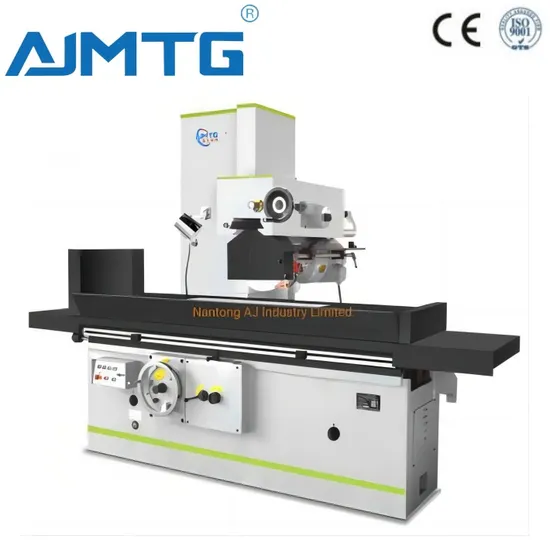

Heavy Duty Surface Grinding Machine M7150X1500/1600
Basic Info.
Model NO.
M7150X1500
Type
Surface Grinding Machine
Processing Object
Metal
Abrasives
Grinding Wheel
Controlling Mode
Hydraulic
Automatic Grade
Automatic
Cylindrical Grinder Type
Surface Grinding Machine
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Worktable Size
400X800mm
Transport Package
Wooden Case
Specification
1700X1290X1940
Trademark
AJMTG
Origin
China
HS Code
84602990
Production Capacity
1500sets Per Year
Packaging & Delivery
Package Size
4650.00cm * 1850.00cm * 2270.00cm
Package Gross Weight
6500.000kg
Product Description
Advantages& speciality:Advantages:
Automatic with compact structure and easy to operate
Mainly surface grinding by use of the wheel periphery, but also by the wheel end surfaces to grind the vertical surface of the workpieces.
Workpieces can be placed on the magnetic chuck or fixed directly on the bench or with other fixtures according to various of workpieces.
Imported hydraulic valve cabinet, best configuration in China of exporting many to Germany. WorkingPrinciple: Hydraulic transmission on longitudinal,light and flexible.
Hydraulic transmission on traversal ,light and flexible also can by manual, convenient to use.
Vertical rapid movement motorized, also can be by manual.
Specification:
| Specification: | Unit | M7150*1250 | M7150*1600 | M7150*2000 | |
| Workable size (W×L) | mm | 500*1250 | 500*1600 | 500*2000 | |
| Max longitudinal travel | mm | 1350 | 1700 | 2100 | |
| Spindle center to table surface | mm | 800 | 800 | 800 | |
| Cross travel | mm | 580 | 580 | 580 | |
| Vertical travel | mm | 600 | 600 | 600 | |
| Vertical feed | Per graduation | mm | 0.01 | 0.01 | 0.01 |
| Per revolution | mm | 1.00 | 1.00 | 1.00 | |
| Fast elevating | Power | KW | 0.37 | 0.37 | 0.37 |
| Speed | r/min | 1440 | 1440 | 1440 | |
| Wheel size | mm | 400*127*40 | 400*127*40 | 400*127*40 | |
| Wheel speed | r/min | 1440 | 1440 | 1440 | |
| Motor power | KW | 12 | 14 | 14 | |
| Wheel spindle motor | KW | 7.5 | 7.5 | 7.5 | |
| Oil pump motor | KW | 4 | 5.5 | 5.5 | |
| Work accurancy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | |
| Surface roughness | um | Ra:0.63 | Ra:0.63 | Ra:0.63 | |
| Machine weight | KG | 6000 | 6500 | 7000 | |
| Machine size | mm | 3800*2700*2800 | 4200*2700*2800 | 4600*2700*2800 | |
