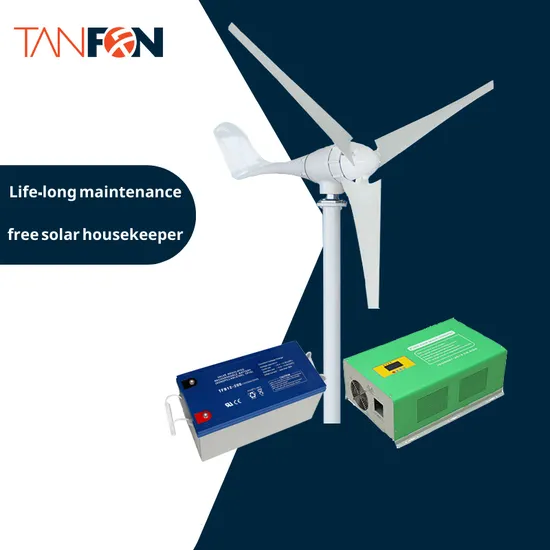

300W-50kw Wind Turbine Generator on Grid Power System
| US$2,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
FD300W- 50KW
Rotating Shaft
Horizontal
Stress Way of Blade
Lift Force
Power
300W-50kw
Certification
CE, RoHS
Model No.
Fd 300W-50kw
Generator Type
Permanent Magnet Generator
Configuration
3 Blades, Horizontal Axis, Upwind
Blade Material
Fiberglass Reinforced Composite
Alternator
Permanent Magnet Alternator, Scf Technology
Protection
Electromagnetic Torque Control and Bra
Packing Material
Carton Box and Foam Material
Transport Package
by Carton Box and Foam
Specification
CE ROHS TUV
Trademark
TANFON or OEM
Origin
Foshan
HS Code
850300300
Production Capacity
10, 000PCS/Year
Product Description
WHY said we have Guaranteed solar power system? 1.Good quality: We use German technology and worldwide famous components 2.Professional installation team:Our engineers have fruitful installation experience in more than 32 countries, 3.Innovative after-sales service: The App has lifetime service with automatic push timing maintenance reminders to enhance the lifestyles cycle of the solar power system.| Wind Turbine And Guy Cable Tower >3years warranty,20year use life > Advantage: light weight, small volume> Starting wind speed:3m/s> Rated wind speed:10m/s> Security wind speed:40m/s >Rated speed:310 r/m | |
| Solar Inverter > 2 years warranty > With built-in charge controller > Pure sine wave inverter > Use copper transformer; > Bypass function with AC charger; > Output: 220V 380V 415V 50/60HZ | |
| Battery > Full sealed gel battery > Service life:6-8 years > 12V 200AH | |
Hybrid Controller >DC 96V input ;MPPT intelligent control>Protection Function: Solar reverse charge >protection , Solar reverse connection protection, >Battery-over-charge-protection >Battery-reverse connection protection | |
| Mounting structure > Slope Roof or Flat roof or Ground (option) > Including complete fittings > Wind load:55 m/s,snow load:1.5 kg/m2 > Structure: Anodized Aluminum +stainless steel, Angle adjustable(other type of rack can be customized as per client's requirement ) |
| Model | FD-50 | FD-100 | |
| Rated power | 50W | 100W | |
| Generator detail | |||
| Starting wind speed | 3m/s | 3m/s | |
| Cut-in wind speed | 3.5m/s | 3.5m/s | |
| Rated wind speed | 12m/s | 12m/s | |
| Security wind speed | 45m/s | 45m/s | |
| Rated DC voltage | 12V/24V | 12V/24V | |
| Rated speed | 1050 r/m | 860r/m | |
| Rotor diameter | 830mm | 1050mm | |
| Rated output AC voltage | 220V/50Hz(110v/60Hz) | ||
| Protection | Electromagnetic torque control and electricity brake | ||
| Type | 3phases permanent magnetism synchronization generator | ||
| Material | |||
| Blade material | Extra-strong and tenacious engineering plastics | ||
| Packing material | Carton box and foam material | ||
| Package | |||
| Packing dimension | 615*260*210 mm | 615*260*210 mm | |
| N. W& G. W(kg) | 2.6/3.2kg | 2.8/3.5 kg | |
| Model | FD-10000 |
| Rated power | 10000W |
| Starting wind speed | 3m/s |
| Cut-in wind speed | 4m/s |
| Rated wind speed | 13m/s |
| Security wind speed | 60m/s |
| Rated DC voltage | 192V |
| Rated speed | 185 r/m |
| Rotor diameter | 7210mm |
| Protection | Electromagnetic torque control and electricity brake |
| Type | 3phase permanent magnetism synchronization generator |
| Blade material | Extra-strong fiber glass |
| Packing material | Plywood box and foam material |
| Packing dimension | 1160*600*740mm |
| N.W&G.W(kg) | 645/686kg |
| Model | FD-300 |
| Rated power | 300W |
| Starting wind speed | 2m/s |
| Cut-in wind speed | 3m/s |
| Rated wind speed | 12m/s |
| Security wind speed | 40m/s |
| Rated DC voltage | 12V/24V(optional) |
| Rated speed | 900 r/m |
| Rotor diameter | 1140mm |
| Protection | Electromagnetic torque control and electricity brake |
| Type | 3phases permanent magnetism generator |
| Blade material | Extra-strong and tenacious engineering plastics |
| Packing material | Carton box and foam material |
| Packing dimension | 1110*580*240 mm |
| N.W&G.W(kg) | 7/10.5 kg |
