Heat Setting Stenter Machinery of Textile Finishing Machinery
| US$185,000.00-269,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FSLD
Material
Cotton,Polyester,Wool,Synthtic,Fiber
Voltage
380V
Load Capacity
1000-2000kg
Certification
CE, ISO9001: 2000
Warranty
1 Year
Customized
Customized
Condition
New
Chamber
4
Chamber Length
12m
Speed
3~30m/Min
Power
110kw
Setting Room Temperature
220ºC
Oil Heating Capacity
80X10000 Kcal/H
Natural Gas Supply
120 Cbm/H
Transport Package
FCL
Specification
32300*4620*1750mm
Trademark
FINESTART
Origin
Jinan, China
HS Code
84518000
Production Capacity
50units/Year
Product Description
FSLD Heat-Seting Stenter MachineDesign Drawing
Functions of Stenter Machines Heat setting is done by the stenter for lycra fabric, synthetic and blended fabric. Width of the fabric is controlled by the stenter. Finishing chemical apply on fabric by the stenter. Loop of the knit fabric is controlled. Moisture of the fabric is controlled by the stenter. Spirility controlled by the stenter. GSM of the fabric is controlled by stenter. Fabric is dried by the stentering process. Shrinkage property of the fabric is controlled. Curing treatment for resin, water repellent fabric is done by the stenter.
Main Parameter and Requirements
| Brand Name | FINESTART |
| Model | FSLD |
| Origin | China |
| Year of manufacture | 2017 |
| Main Matching Fabric | open width fabric (70~350g/m²) made of cotton, cotton/polyester,wool,synthtic fiber and other blended fibers |
| Heat source | natural gas/circulating conduction oil/steam |
| Stentering type | hot air circulating |
| Holding type | pin+clip |
| Chain type | pitch 60mm,oil-free lubricated |
| Rail type | carbon steel+polymer wearing strip |
| Working type | horizontal return chain |
| Working width | 1000-3600mm |
| Working speed | 5-60m/min |
| Chamber Nos | 2-12 |
| Chamber width | 3000mm |
| Insulating board thickness | 150mm |
| Temperature of chamber | 100~220ºC |
| Pinning & brush overfeed ratio | -20%~40% |
| Temp.& Breadth adjustment type | separately adjust on each chamber |
| Capacity of machine | 61.5kw+22.75kw*chamber*Nos |
| Standard machine power supply | 380V/3P/50HZ |
| Control power supply | 220V/24V |
| Steam specification of steam box | 3-6kg/cm² |
| Steam comsuption of steam box | 100-150kg/h |
| Compressed air | 0.35-0.6MPa |
| Total weight | 14T+5.8T/chamber*Nos |

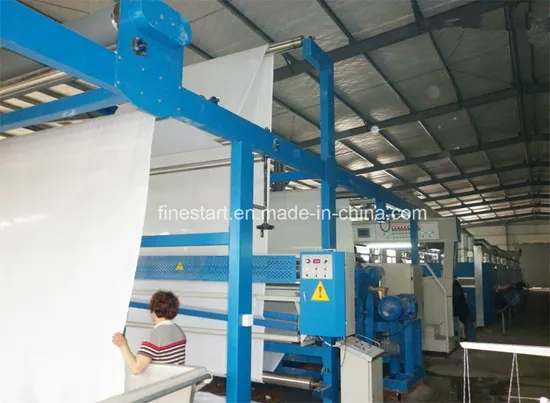

Production Line
Please dont hesitate to contact us if you have any question.
