Cnp Vertical High Pressure Water Pump for RO Plant

Product Description

Description

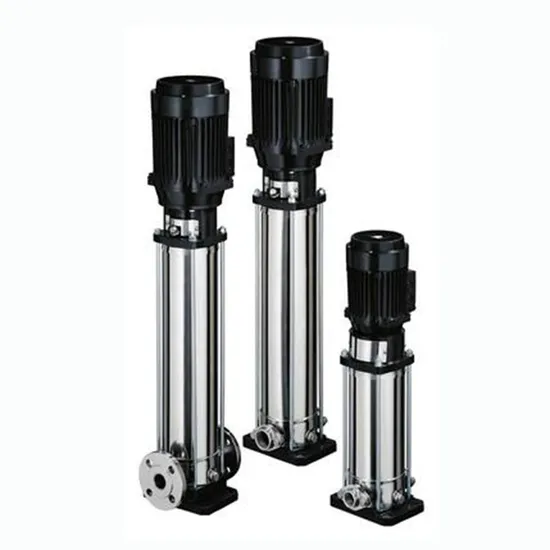

CDL / CDLF is a kind of vertical multi-functional centrifugal pumps.It can be used to convey various medium at different temperature and with different flow rate and pressure. CDL type is applicable to conveying non-corrosive liquid, while CDLF is suitable for slightly corrosive liquid.


Application
1) Water Supply: water filter and transport in waterworks, boosting of main pipeline, boosting in high-rise buildings.
2) Industrial Boosting: process flow water system, cleaning system, high-pressure washing system, fire fighting system.
3) Industrial Liquid conveying: cooling and air-conditioning system, boiler water supply and condensing system,machine-associated purpose, acids and alkali.
4) Water Treatment: ultra filtration system.
5) Reverse Osmosis System.
6) Distillation System, separator, swimming pool.
7) Irrigation: Farmland irrigation, spray irrigation, dripping irrigation

Operation Conditions
1) Clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
2) Liquid temperature: Normal temperature type:-15ºC~ +70ºC ; Hot water type:-15ºC~ +120ºC
3) Ambient temperature: up to +40ºC
4) Altitude:up to 1000m
5) When the density or viscosity of the transmission medium exceeds that of water, it is necessary to select a driving motor of high-power.
6) PH 5-8
Note:Special demands can be negotiated. Product Parameters

Model	Driving motor		Q(m3/h)	1	1.2	1.6	2	2.4	2.8	3.2	3.5
	KW	HP
CDL2-2	0.37	0.5	H(m)	18	17	16	15	13	12	10	8
CDL2-3	0.37	0.5		27	26	24	22	20	18	15	12
CDL2-4	0.55	0.75		36	35	33	30	26	24	20	16
CDL2-5	0.55	0.75		45	43	40	37	33	30	24	20
CDL2-6	0.75	1		53	52	50	45	40	36	30	24
CDL2-7	0.75	1		63	61	57	52	47	41	35	28
CDL2-9	1.1	1.5		80	78	73	67	61	54	45	37
CDL2-11	1.1	1.5		98	95	89	82	73	64	54	44
CDL2-13	1.5	2		116	114	106	98	89	78	65	52
CDL2-15	1.5	2		134	130	123	112	100	90	73	60
CDL2-18	2.2	3		161	157	148	136	121	108	91	76
CDL2-22	2.2	3		197	192	180	165	148	130	110	90
CDL2-26	3	4		232	228	214	198	179	158	130	110

Company brief introduction
We Ewater are Water treatment product and service provider, located in Yixing, Wuxi China, which gathers 6 0 0 manufacturers of environment protection products, famous in China as "City of Environment Protection Products".
We help customers to select and purchase the high quality and cost-effective products among hundreds of thousands of manufacturers in water treatment field in China. We have one hundred suppliers as our partners, specially, there are hundreds of companies specialized in water treatment are located in the same area as our company located.
We have sister company "Jieming International Trading" in Dubai, U A E, provide water treatment products and services for Middle East countries since 2 0 0 5.
Our many years experience and professional team in water treatment field give us the advantages such as:
Helping buyers to choose very suitable products among so many manufacturers;
We accept customized orders based on their needs, whatever the quantity or model is;
We offer fast delivery upon customers' requests by all means, such as air freight, courier with an affordable cost;
We provide one-stop service for product sourcing, purchase, export, delivery, warranty after sales, all in one stop, reliably and efficiently.
In the past 4 years, we have supplied and serviced hundreds of clients in 8 0 countries all over the world.
Our mission is:
Empower our customers buying water treatment products from China as easy as buying from their hometown.
FAQ
Q1.Are you a factory or trading company?
A1:We are a professional water treatment equipment and accessories manufacturing factory that set up for over 10 years. We always pay attention to the development of the industry!We can give a discount according to the quantity of the machine you purchase.
B1:At the same time,we take effective measures to control the production process for ensuring the quality of products. Our products are certified.And we can supply SGS,ISO9001,CE certification.
Q2.What products does your company offer by yourself?
A3:We are specialized in reverse osmosis equipment,ultra filtration equipment,EDI electric desalination system,sea water
desalination system,water treatment spares,water treatment accessories etc.
Q3.How can I know your machine works well?
A4:Before delivery,we shall test the machine working condition for you.
Q4.What's the information you need to know before order?
A1:What's the type of pump you need?
B1:What's the model of pump you need?
C1:What's the application of pump?
D1:what's voltage and HZ you need?
