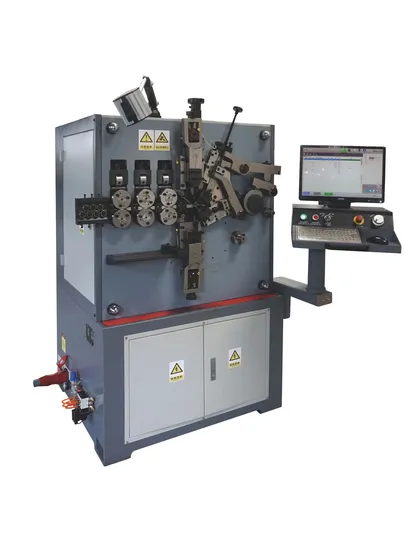

Hot Sale High Quality Automatic CNC Spring Coiling Machine Supplier

Product Description

Hot Sale High Quality Automatic CNC Spring Coiling Machine Supplier
Might & Joint Spring Machinery--Professional for Camless CNC Spring Machine over 20 years, the leader for Camless CNC Spring Machine Industry. Company Profile:Might & Joint (Dongguan Might Precision Machinery Co., Ltd) is professional in researching, developing, manufacturing and selling Camless CNC spring machine. Its current leading products including CNC Versatile Spring Forming Machine & CNC Compression Spring Machine &Automatic 3D/2D Wire Bending machine, the wire size covers 0.15mm to 20.0mm.
Product Specification: 5 servo motors, industrial computer controlled insuring reliable control. Graphic and easy to use software simplifies programming. Cam-less operation provides quick and easy setup. A micro-pulse hand wheel for easy setup and programming. The computer system stops the machine if a programming error exceeds machine setup capabilities. On-screen diagnostics shows alarm status and corrective action required. Standard spring shapes are pre-programmed for easy setup. O.D. control is a standard feature. State of the art touch screen control interface for easy operation. Programmable air valves provide flexible pneumatic application. Security sensor and position sensor included. USB data access interface, convenient for program backup and production management.

Model	JTC510
Min Wire Feeding Value	0.01
Axes Number	5axis
Max wire Feeding Value	10000.00MM
Wire size range	0.15-1.0mm
Max Wire Feeding Speed	100M/Min
Max. Feeding length	unlimited
Total output power of servo motors	3.15KW
Input Power Supply	380V/50HZ/3PH
Control System	self developed system
Probe No.	3
Net Length	1200MM
Net Width	800MM
Net Height	1600MM
Net Weight	500KGS
