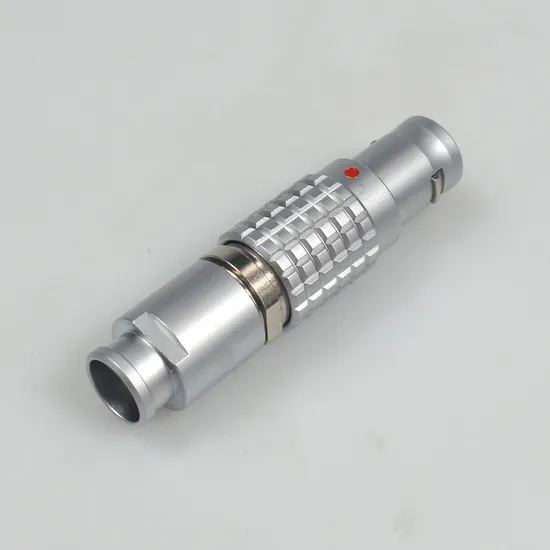

B Series Fgg 304 2-30 Pin Self Locking Circular Push Pull Connectors

Product Description

How to choice right connectors
Size: 00B(M7), 0B(M9), 1B(M12), 2B(M15), 3B(M18) avaliable
Pin number:
00B: 2, 3, 4, 5pin
0B: 2, 3, 4, 5, 6, 7, 9pin
1B: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16pin
2B: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 18, 19, 26pin
3B: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 30pin
Max.cable diameter:
00B: 5.0mm
0B: 7.0mm
1B: 9.0mm
2B: 12.0mm
3B: 15.0mm
IP rating: IP50
Color options for bend relief: Black, grey, red, green ect Product Description
Packaging & Shipping
Product Parameters Technical Characteristics

CHARACTERISTIC	PARAMETER	STANDARD
Insertion times	>5000 times	IEC60512-5 test 9a
Humidity	Up to 95% at 60°ºC
Temperature range	-60°C, +220°C
Anti-vibration performance	10-2000Hz,15g	IEC60512-4 test 6d
Impact resistance	100g,6ms	IEC60512-4 test 6d
Salt spray corrosion test	>144 hours	IEC60512-6 test 11f
Degree of protection (when mated)	IP50	IEC60529
Environmental experiment	55/175/21	1EC60068-1

Electrical properties

CHARACTERISTIC		PARAMETER	STANDARD
Shielding effect	At 10MHz	>75dB	IEC60169-1-3
	At 1MHz	>40dB	IEC60169-1-3

Design drawings
