Tdxz Flour Bran Silo Vibro Discharger Silo Bottom Vibration Unloader Discharger Bin Activator

Product Description

Hyde Machinery (Maosheng Group)
- Seed processing plant: 1~15 t/h
- Flour mill plant: 40~1000 t/d
- Manufacturer since 1976

1) Function: gentle grading of all granular materials by length
2) Capacity: 5t/h (based on wheat with 3% impurities).

vibro-discharger TDXZ for the dependable discharge of free-flowing to extremely non-free-flowing bulk materials from concrete, steel and plastic bins. The TDXZ ensures segregation-free, complete discharge of round, square and rectangular bins.

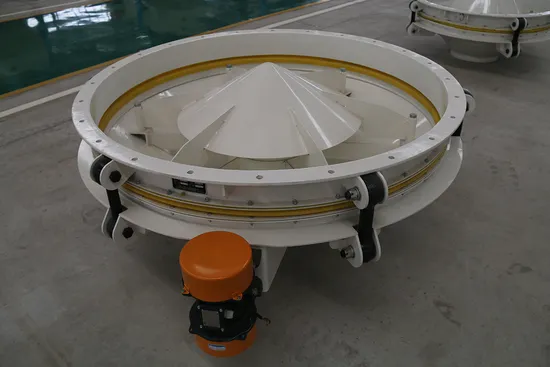

Hyde TDXZ Vibro Discharger is a silo arch-breaking device. installed under the silo bottom , with good performance in eliminating bridge , reduce silo segregation promote mass flow , for continuous flow of dry bulk materials .can also used for stop feeding flow or control feeding flow.

Hyde TDXZ Vibro Discharger machine can be attached to any silo or bin , for discharging materials uniformly with the motion of vibrating. Materials flow down to the discharging hopper and then under the vibration of motor, materials will flow through discharging plate evenly and gradually without being blocked. achieving an uniform flow of discharge from concrete, steel or plastic bins , suitable for bulk powder materials or granular materials.
5XW-5
Indented Cylinder Advantage
Modular design for variety of series and models Reliable equipment for material discharging form vary kinds of bins to prevent"bridge" Reinforced vibrating cone enable smooth material flow Sulfurization treatment applies to rubber cushion for vibro support rod Extended discharge funnel to reduce the weight applied to the sealing ring Quality anti-aging rubber seals Unique designed the seal clamp for reliable operation Laser cutting applies to sheet metal components for quality and accuracy Carbon dioxide gas shielded welding workmanship CNC machining centers ensure precise fabrication Powder coated parts and compaonents for best quality and duration
Technical Parameters

5XW-5 Seed Indent Cylinder Specification

Model	Motor speed (r/min)	Swing/mm	Power(kW)	Weight/kg	Size(mm)
TDXZ100*30	1430	0.8~3.2	0.37	220	1480*1260*530
TDXZ130*30			0.37	300	1780*1560*640
TDXZ130*50			0.37	280	1780*1560*560
TDXZ160*50			0.55	550	2080*1860*704
TDXZ200*50			0.75*2	820	2480*2260*895

Notes:
1. Outlet diameter can be customized as per required ;Height of outlet can be customized as per required;
2. Above technical data can vary due to continued development, or different machine configurations.
