Lithium/Lead Acid Battery Charger High Power 48V 80A AC Input 380V Fast&Endurable

Product Description

Product Description
Lithium battery charger

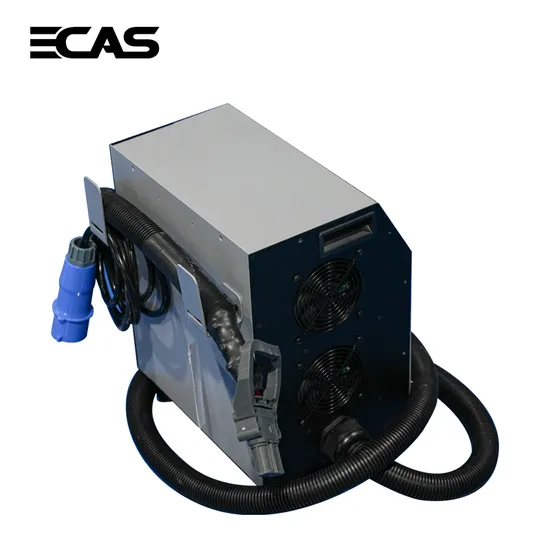

Lithium/Lead Acid Battery Charger High Power 48V 80A AC 380V Fast&Endurable
Brief Description
Intelligent 4 steps charging with pre-charge, CC, CV and floating or automatic cut - off, this charger will charge your racing battery very fast, with high efficiency and protect your battery life to the max. High quality, factory price and 2 years warranty.
Product features
1) Optional charging methods: Lithium or AGM batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Charging parameters are insensitive to the AC input line voltage variations.
5) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
6) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
7) Aluminum casing, light weight, portable.
8) 100% full load burn-in test.
9) 2 years warranty.
Product Parameters
48V80A Battery Charger Parameters

Name:	ECAS-6000-4880	Output plug	Rema160A
Input voltage	AC380V±15%	CAN	Slectable
Enter the phase	Three phase four line	Charging protocol	Customizable
Frequency	50/60Hz	Match to the battery type	Lead acid/lithium battery
Input current(max)	7.6A	Product size	398*200*390 mm
Power factor	≥0.99	Net weight	17kg
Interiorput power	5008W	Cooling down method	forced air cooling
Enter the plug	Three phase +PE	Working temperature	-20ºC-50ºC
Conversion power	≥0.92	Working humidity	0%-95%
Rated output voltage	57.6V	Levels of protection	IP20
Rated output current	80A	IP level(whether optional)	IP54
Output rating	4.6Kw	Decibel	<65db
Output voltage range	10Vdc-60Vdc	Work altitude	<2000m

Other Item Battery Charger

Model Number	XYM12V30A	XYM2415A	XYM2420A	XYM36V15A	XYM48V10A	XYM60V8A
Max charge curent (A)	30A	15A	20A	15A	10A	8A
Maximum power point	17V	34V	34V	45V	68V	75V
Input Voltage (DC)	17V	34V	34V	45V	68V	75V
Applicable battery	Lead acid maintenance free, lithium ternary battery, LiFEPO4
Maximum efficiency	90%
Output voltage stabilization accuracy	±1%
Input Voltage Stabilization Accuracy	±1%
Work Temperature	-30ºC-65ºC
Seismic grade	SAEJ1378
Cooling method	Forced air cooling
Over temperature protection	75ºC±5ºC
Input undervoltage protection	Under voltage point 165V
Output overcurrent protection	110*Max charge current
Output short circuit protection	The charger shuts down and automatically recovers after the short circuit is removed when the output is short circuited,
Battery reverse connection protection	The charger shuts down and gives an alarm, which automatically recovers after connect correct when the battery line is connected inversely.

battery type	battery cell	nominal voltage	charge voltage	charge current
3.2VLifepo4	12V	4S	14.6V	40A
	24V	8S	29.2V	30A
	36V	12S	43.8V	25A
	48V	16S	58.4V	20A
	60V	20S	73V	15A
	72V	24S	87.6V	12A

Lithium battery customization Lithium battery manufacturersINTRODUCTIONMost of the traditional charger and simple charger are made up of industrial frequency transformer and rectifier circuit (silicon controlled rectifier (SCR)). Even use the silicon controlled rectifier to adjust the AC mains supply to charge battery. Though this circuit is simple, but it has disadvantage:

1	Big volume and high weight, not convenient for transportation and use
2	Lacking protection function, bad reliability
3	Must manual adjust charge current, difficult to full charge and avoid over charge the battery.
4	Silicon controlled rectifier adjusts the AC mains supply to charge battery directly. Then there is not isolation with AC mains supply which is dangerous to get an electric shock. And it will damage the AC mains supply waveform.

ADVANTAGE

1	Short-circuit protection: output current will cut off automatically when short-circuit.
2	Overload protection: Output Current Will Be Limited Automatically When Overload.
3	Reverse polarity protection: it will shut down until fuse or the fault removed.
4	2-stage charging mode: CC(Constant Current), CV(Constant Voltage)
5	Long lifetime: In the MTBF test, it makes more than 30,000 POH (power on hours) ,which means about 10 years if it work 8 hours every day.
6	LED Meter available: Show Charging Voltage and Charging Current.
7	All kinds of production has passed the CE certification and ROHS.
8	Aluminum shell:The charger body uses aluminum shell,convenient heat dissipation ,and is not easy to deform ,not easy to damage,give you a perfect apperance and use experience.
9	Automatic Fan Forced Ventilation Forced Ventilation helps to cool the charger in time
10	Note: The charger should be placed in good ventilation and free of flammable materials.

Scene description

About the plug of the charger

APPLICATION FILED

Common Faults and Solutions:1) Error input voltage: Check if the input voltage conformed to the requirement or not.
2) Abnormal AC input: Check whether there is AC voltage and whether the input plug is loose.
3) Machine over heat: Check that the fan is running. Also pay attention to ventilation at the
working place of charger, covering anything on the charger is not allowed.
4) Output short circuit: Check the wire line of output terminal to exclude short-circuit.
5) No battery or reverse connection: Check the battery connection, connect the battery correctly.
6) Battery voltage is too low: Make battery voltage up to the starting voltage of charger

Production Line

Hot sale Products
If have any interest,please do not heasite clink below pictures.you will find what you need
Packaging & Shipping
We have a 24 hours *7 days friendly and professional customer service team, providing a strongly 1 years warranty at least and free lifelong technical support. All products will be tested for capacity and checked for external damage before packaging. And we provide English guideline and user manual to help you operate products easily and quickly.
Exhibition Pictures
Company Profile
Our company is located in HEFEI City, ANHUI Province China, is the large-scale professional agriculture Machinery,Forklift Parts manufacturer with integration of manufacturing, export and after-sale service. Establish in 2017, by now Forklift electrical accessories basically cover the vehicles of major domestic brands( Such as Zhongli,Nuoli,Afterburner,Heli,Baoli,TCM TEU)The company′s main products cover Electric Vehicles,Electric Forklifts,Motor Controller ,Lithium battery and sell parts and accessories for electric Vehicles ,including motors Electric Controls ,meters,accelerators,control handles ,DC converters,power connectors ,wiring harness,Various electrical switches and so on.
We have professional quality inspection department, every machine will be tested 3 times before delivery in order to make sure the machinery in future.
With high quality product, competitive price, and best after-sale service, we have gained good reputation from all over the world, such as Europe, South Korea North, America, Central and South America, Africa, Australia, New Zealand and so on.Base on it ,we welcome buyers from all over the world.
