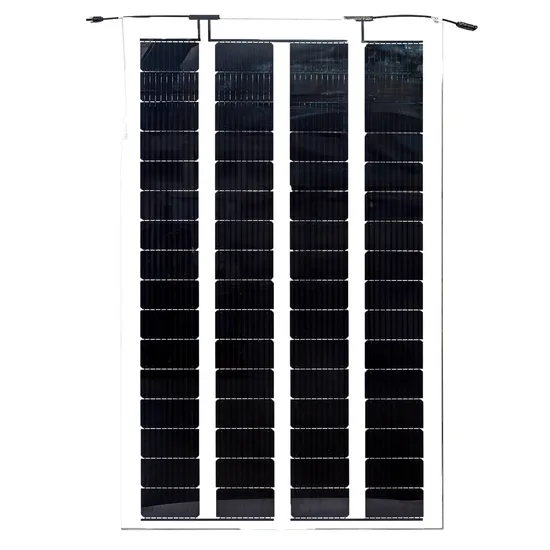

230W 240W Colored BIPV Transparent Solar Glass

Product Description

Hot Sale BIPV Mono Module 240 Watt Product Description PV Module
Electrical Charateristics

Product Model	230	235	240	245
Maximum Power W	230	235	240	245
Maximum Power Voltage (Vmp)	34.39	34.68	34.98	35.21
Short Circuit Current(Isc)	13.63	13.75	13.86	14.00
Open Circuit Voltage (Voc)	21.7	21.97	22.20	22.43
Module Efficiency	11.8%	12.0%	12.3%	12.5%
Power Tolerance	±5W

Temperature Charactristics

Temperature Coefficinents of Voc( % °C)	-0.35
Temperature Coefficinents of Isc ( % °C)	+0.046
Temperature Coefficinents of Pm ( % °C)	-0.47
Temperature Coefficinents of Vm ( % °C)	-0.38
Temperature Coefficinents of Im ( % °C)	+0.04

Mechanical Specifications

Cell Type mm	Mono 64 (4*16)
No. of Cells pcs	120 (6*10*2)
Size of Modules mm	1722*1134*30
Front Glass Thickness	2.0 mm
Weight Per Piece KG	24.5±5%
Module Composition	EVA/POE/PVB
Maximum mechanica test load Pa	Front 5400 Pa Back 2400 Pa
J-box Prating	IP68
Operating Temperature °C	-40 to +85
Nominal module operating temperature NMOT	45 ± 3 °C

Installation
