YT-1310 Flatbed Digital Corrugated Paper Box Sample Making Cardboard CNC Cutter Paperboard Knife Cutting Machine Carton Box Maker

Product Description

Product Description Newly upgraded, faster working experience
Equipped with touch screen, friendly machine interface
Cutting depth can be adjusted,operation is more convenient.
Precision V cut Integrated machine design, more stable and beautiful.
Main cutting material: corrugated , honeycomb EPE, cardboard, foam board, gray board, PVC expansion sheet, coroplast EVA and so on.
Main application industries: Sample maker,small batch production :advertising, display, packaging, color printing and other industries
Detailed Photos
Product Parameters

Technical parameter:
Model	YT 2516	YT 1713	YT 1310
Effective cutting area mm	2500mm*1600mm	1700mm*1300mm	1300mm*1000mm
Configuration	Oscillating knife, pen, creasing wheel drag knife, V cut
Maxspeed	1400mm/s
Smallest cutting diameter	6mm
Maximum cutting thickness	30mm
Driver	Servo
Cutting Precision	±0.1mm
Repeat Precision	≤0.1mm
Toolset	Equipped with:Oscillating knife, creasing wheel pen.V cut.Laser positioning
Function	Oscil ating cuting, creasing, dotted line, kiss cut, drawing, laser positioning, infrared protection
Cutting material	max30mm thickness EPE, 15mm thickness corrugated, 3mm thickness gray board 1.5mm thickness cardboard PVC film, etc.

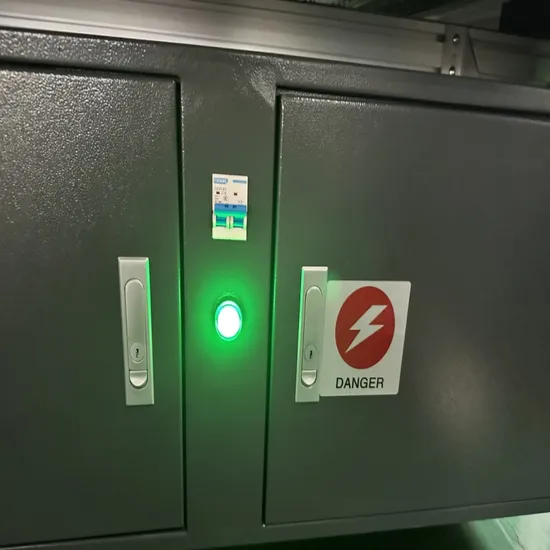

Equipment composition	Cutter table, control box, vacuum pump, air compressor
fixing method	Vacuum pump adsorption
Vacuum pump	5.5KW,380V
Dataport	DXF
Voltage	220v±10%50Hz
Dataport	COM/USB port
Option	Video registration system/V cut tool/Foam too
Occupy dimension(L*W*H)	3300*2460*1180mm	2500*2160*1180mm	2100*1860*1180mm
Note	Other size can be customized

FAQ We are a production and trade integration of the company, the company has many years of production and trade experience, can meet the needs of different customers, welcome new and old customers contact to negotiate business!
We can provide you with professional one-stop carton machinery procurement and after-sales service.1.Q: Are you manufacturer, trading company or a third party?A: We are trading company, but we have three main facoriers.One factory main for corrugated cardboard production line.One for making printing slotting die cutting mahcine and stacker machinery,The third one is main for gluing and stitching machine.All profession making special machine.Don't worried.We have professional teams to do every department.2.Q: What is your minimum order quantity, can you send me samples?A: Our mininun quantity is 1 set, as our product is carton machinery equipment, it's difficult to send you free samples first, if you have any questions about the products, please feel free to contact us for more detail, we are glad to provide you more information of our machines, such as specifications,video, etc3.Q: How does your factory do regarding quality controlling?A: Quality control department are specially responsible for quality in each processWe have been kept privding quality products by introducing advanced fechnologies for over 15 years, and our products are also widely exported to many different countries including Russia, the MiddleEast, Africa, Southeast Asia, ERU, etc, which earned us a high reputation among the customers.4.Q: How about the after-sale service?A: 1) Online for 24 hours, also contact can by Email, Facerbook,Wechat, Whatsapp, telphone,etc. 2)To solve the problems with videos/pictures. 3)In principle, we provide a lifetime service policy for machines sold by our company. Quality assurance is generally 12-18 months (different machines, warranty period is not the same), the scope of warranty includes the mechanical part of the problem, does not include human damage caused by the machine can not be used, but we will make our best efforts to help you solve the problem. Electrical parts are not covered by warranty if not for quality problems.
