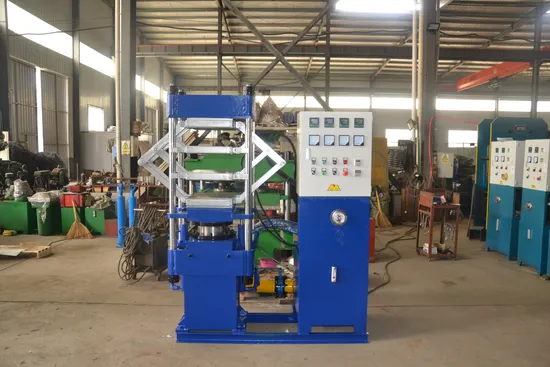

EVA Pouring Foaming Machine/EVA Vulcanizer/EVA Foam/Foam Yoga Mat/EPDM Sponge Foaming/Rubber Sealing Strip Foam
Basic Info.
Model NO.
XLB-DQ
Control Type
PLC
Automatic Grade
Automatic
Power Source
Gas
Type
EVA Foam Press Machine
Place of Origin
China
Condition
New
Video Outgoing-Inspection
Provided
Machinery Test Report
Provided
Warranty of Core Components
2 Years
Core Components
PLC, Motor, Pressure Vessel
Machine Type
Plate Vulcanizing Press
Weight
22000
Key Selling Points
Easy to Operate
Applicable Industries
Manufacturing Plant
Voltage
380V
Dimension(L*W*H)
2400X2100X3200
Power (Kw)
11
After-Sales Service Provided
Field Installation, Commissioning and Training
Name
Rubber Foam Vulcanizing Press
Transport Package
Customized
Specification
2400x2100x3200
Trademark
wanflon
Origin
China
HS Code
8477590000
Production Capacity
300sets/Year
Product Description
EVA Foaming Vulcanizer Technical Parameters:
| Type | XLB-Q1200x1250 |
| Total pressure(t) | 800 |
| Plate size(mm) | 1022x1250x70 |
| Daylight(mm) | 150 |
| Layers | 6 |
| Piston stroke(mm) | 900 |
| Close mould speed(mm/s) | ≥40 |
| Open mould speed(mm/s) | ≥150 |
| Cylinder diameter(mm) | Φ750 |
| Motor power(kw) | 15x2+11 |
1. Professional manufacturer of curing machine
2. High quality plate press,Large clamping force
3. Competitive price, Compact structure
4. High speed open/close mold, high production efficiency, protect mold.
5. Matching advanced oil way, reduce energy consumption.
6. Its structure is simple and application is wide. It is easy to be operated.
EVA Foaming Vulcanizing Press Trade Terms:
1. Payment:
(1)Telegraphic Transfer (30% advance payment, balance before shipment;
(2)Telegraphic Transfer (30% advance payment, balance against copy of documents);
(3)Letter of Credit: at sight;
2. Lead Time: 2 weeks after confirmed order;
3. Delivery way: by sea.
EVA Foaming Vulcanizing Press Our Advantages:
1) Raw material:our raw materials are purchased from reputed suppliers,such as Siemens----good quality from the origin;
2) Design:Our engineers are experienced with professional knowledge----scientific and suitable design for you;
3) Make process:Products are processed in a high level automatic CNC center by experienced workers----always endeavoring to do still better;
4) Through the ISO9001 certification, and establish strict quality management system.
