Gravimetric Feeder Geomembrane Extrusion Film Blown Blowing Line Extruder Making Machine Equipment
| US$14,000.00-14,500.00 | 1 pc (MOQ) |
Basic Info.
Model NO.
CGB-1200-4
Raw Material
PE
Maximum Folding Width of Film
800mm
Screw Diameter
120mm
Automation
Automatic
Computerized
Computerized
Machine Weight
250kg
Certification
CE
Capacity
1200kg/Hr
Usage
Mixer Equipment
Function
Automatic Operation
Power(W)
1.5kw
Voltage
3pH400V50Hz
Motor
Siemens Brand
Weight
250kg
Transport Package
Wood
Specification
1210*1160*1870mm
Trademark
Sanzhong
Origin
Guangdong
HS Code
84778000
Production Capacity
2000PC\Year
Product Description
Scope of application:

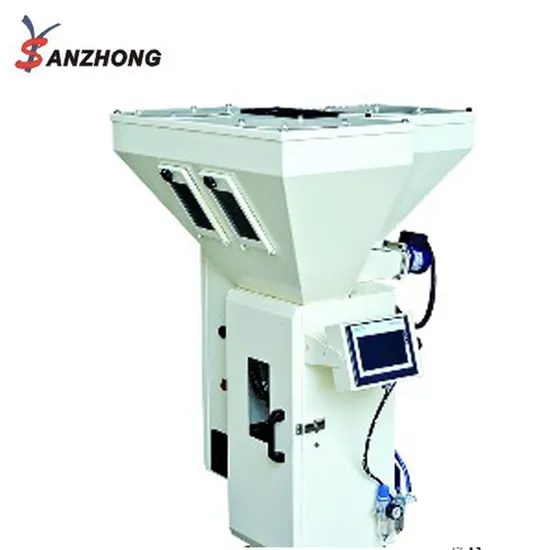

For the extruding online processes with multi, proportional and high precise of materials like pellets, sheets, regrinds or powder in plastics industry. Gravimetric dosing and blending unit for direct installation on the inlet flange of a plastics processing machine or on floor stand. The unit can dose and blend up to 4 components by standard and can be tailored for 6 components or more. Material blending with high accuracy and repeatability, specifically designed for injection moulding/blow moulding machines and extruders with an throughput from 50kg/h to 3000kg/hr. Actual metered and weighed amounts are constantly checked against the pre-selected set values by a modern PLC based control. This guarantees an exceptionally high recipe accuracy (±0.1~±0.3%) by continuous self-optimization.Dosing range: main component 5 - 100%, Dosing range: additive 0.5 - 10% - Power supply 1PH/230V 50HZ for CGB50 - CGB400, 3PH400V50HZ for CGB600 - CGB3000.
Feature:
| 1.Alll parts accessible for easy cleaning; |
| 2.Suitable for processing up to four components simultaneously; |
| 3.Built-in automatic loading control procedures; |
| 4.PLC controller, reliable performance, convenient maintenance; |
| 5.Adopting advanced control algorithm, autonomous optimization, automatic calibration and shaking prevent function, ensure the best accuracy; |
| 6.Color chart shown, touch screen operation, three languages on-line switching; |
| 7.Turbo control mode, improve production; |
| 8.Up to 100 recipes can be stored for later use; |
| 9.Multilevel password protection and historical alarm record; |
| 10.USB2.0 interface for saving recipe data to flash disk, Facilitate the Quality Management; |
| 11.With sound and light alarm, facilitate operator quickly and accurately reach fault machine area; |
| 12.All raw material contact parts are made by stainless steel, prevent the materials being polluted |
| 13.All raw contact parts are made by stainless steel, prevent the materials being pollute |
Specifications:
| Model | CGB-50 | CGB-100 | CGB-200 | CGB-400 | CGB-800 | CGB-1200 |
| H(mm) | 1010 | 1010 | 1225 | 1335 | 1875 | 1900 |
| W(mm) | 605 | 605 | 815 | 815 | 1060 | 1210 |
| D(mm) | 640 | 640 | 770 | 770 | 1070 | 1160 |
| Magnetic Base (mm) (H×W×D×W1×B×A×C) | 193×240×240× 180×140×13 | 193×240×240× 180×140×13 | 196×313×323× 180×150×13 | 196×313×323× 180×150×13 | 200×540×490× 220×180×13 | 200×540×490× 220×180×1 |
| Mobile Stand (mm) (H1×H2×W×D) | 700×750×680×530 | 700×750×680×530 | 800×850×780×610 | 800×850×780×610 | 800*70*1000*750 | 800*70*1000*750 |
| Net Weight (kg) (Machine Mount) | 90 | 90 | 130 | 140 | 200 | 250 |
| Net Weight(kg) (Floor Mount) | 110 | 110 | 155 | 165 | 250 | 340 |
