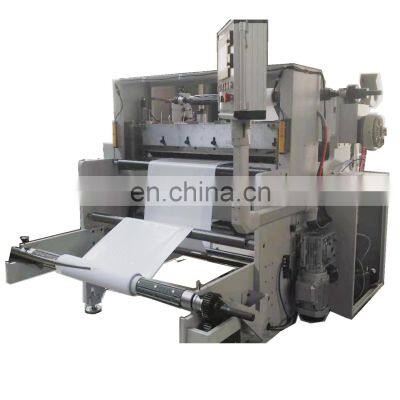

Roll to sheet cutting machine with kiss cutting

Product Description

Product Description
Roll to sheet cutting machine with kiss cuttingSuitable cutting material:Sophisticaiton deviated light slice with high precision, separated light plank, back light plank, conducting rubber, electrode material, compound film, soft and hard slice with hing.Functional characteristics:1. It adopts computerization number control, convenience of operation.2. Operation instrument panel with humanization design, ease of operation.3. The length adopts number control.4. It can set and cut the amount of break, the amount is up to requirement, it will stop automatically and it also can deliver automatically.5. After the machine shutting down, it still can remember the amount automatically.6. Its speed can be adjusted between (0-99), it can be set according to different kinds of materials.7. It can set XY shaft cutting.8. It can cut te half or the whole. Products:DP-550 High precision sheet cutter Class:Roll to Sheet Cutting machineAbout this product:ModelDP-550 cutting machineDP-650 cutting machineMax Feeding Width ( mm )550650Main Engineer Power ( kw )1.51.5Speed ( t/m )160160Size ( mm )1500*1400*15001500*1600*1500Weight ( kg )550800Precision ( mm )±0.10±0.10Power220V 50HZ220V 50HZ ModelMax Feeding Width (mm)Main Engineer Power (kw)Size (mm)Speed (t/m)Weight (kg)Precision (mm)voltageDP-1000CQ 10004.51860*1720*1920120 (1-180MM)1500±0.03380V 50HZTouch Screen MCGS Beijing ChinaPLCMITSUBISHI Made in JAPANServo Driver DELTA Made in TAIWANServo Motor DELTA Made in TAIWANMotor of cutting knife TONGLEEMade in TaiwanAC Contactor RENMIN Shanghai Made in China20A Solid State Relay Omoron JapaneseElectric eye Panasonnic Made in JapanKiss Cut knife stainless steel material Full cut knifestainless steel material Automatic lubricator WLP Taiwanunwinder Include 1 pcs 3inch shaft
