High Sensitivity Metal Detector and High Accuracy High Speed Check Weigher Checkweigher Machine for Food Packed in Sachet Bag Case Carton Box Can Bottle

Product Description

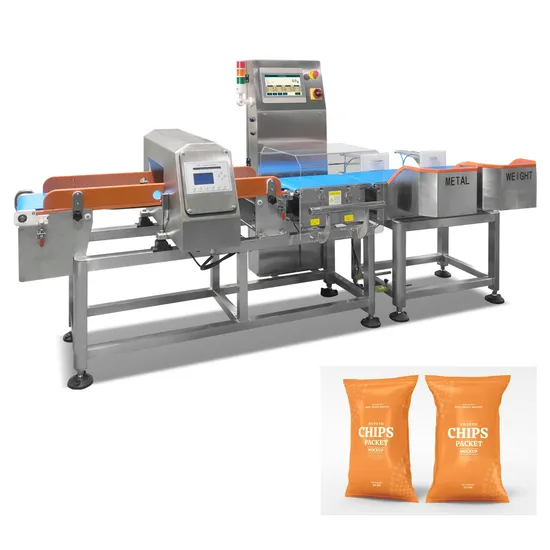

High Sensitivity Metal Detector and High Accuracy High Speed Check Weigher Checkweigher Machine for Food Packed in Sachet Bag Case Carton Box Can Bottle Product show
1. Key function. This machine, with high sensitivity, strong anti-interference ability, stable performance, automatic fault detection, can effectively eliminate unqualified materials.
2. Customization. The machine can be customized according to the exact situation of the production line. It improves production efficiency. It also can be customized according to the detected products size, weight, characteristics to ensure the best detection effects meet your need.
Our checkweigher system can integrate with your existing production line without difficulty, easy to improve your working efficiency.
3. Reporting Data. Real time reporting data, which can be exported to Excel file, is available. Storing 1 year production data in USB disk is both available.
4. Easy to use. Touch screen operating system is easy to be used with user password protection. LCD touch screen offers both Chinese and English interface and easy to be used. Interface with multi-languages
is available.
5. Connectivity. It can be connected to peripheral devices and work with them simultaneously .So the whole food production line operation can be achievable.
6. IP 65 for all components.
Custom testing is available for any products. ---------------------------------------------------------------------------------------------------
Please Click Here for More Details
Metal Detection & Checkweigher Combo System will be metal detector and weighing checker combined into one, in order to achieve one machine dual-use, two processes and one-stop operation of the new detection machine equipment, this design saves the original production process. The machine improves production efficiency, occupies a small area, is easy to install, and fits well with the spatial layout of the production line.
Widely applied in electronics products, pharmaceuticals, food, beverage, daily used products, light industrial products, agricultural products weight and metal checking.
Layout Paramters Metal Detector Part:

Machine Grade	Food Grade
Detecting width	220, 240, 300 mm (Customized)
Detecting height	80, 100, 120 mm (Customized)
Detecting sensitivity	Fe 0.5mm-1.0mm, Non-Fe 1.0mm- 1.2mm Stainless Steel 1.5mm- 2.0mm
Display Screen	7inch
Sensitivity adjustment	100 level adjustment
Detecting adjustment	Intelligent adjustable
Belt Speed	20m /min (or specified)
Language	Chinese-English (or customized)

Check Weigher Part:

Weighing range	5~1000g / 10~5000g (Optional or specified)
Detection object size	L : 1~300mm (or customized)
	W : 1~220 mm / 1~240mm / 1~300mm (or customized)
	H: 1~100mm / 1~150mm (optional or customized)
Weighing section size	L: 400 mm (or customized) ; W: 220 / 300 mm (Optional or specified)
Touch Screen	10.1 inch color TFT touch display
Minimum scale	0.1g ( Based on Max. Weighing range )
Checking accuracy	± 0.1g ~ ±1g / ± 0.7g ~ ±1.5g (Based on size of weighing area)
Belt height from ground	680mm~750mm (Or customized height)
Conveyor belt speed	20m / min fixed speed or 15-30m / min adjustable speed (or customized)
Material. Surface	304 stainless steel surface polishing
Load cell	METTLER TOLEDO
Language	Chinese / English (or customized)
Rejection Method	Sound and light alarm, Air blow type or push rod type rejection (More rejection methods are available)

The appropriate plugs are configured to meet your country standard.
Company Profile
Our Sevice ·One year Warranty including free maintenance and changing Instrument components
·We will offer operation video, English operation manual ,life-long technical assistance and video teaching
·Future testing solutions consultation and laboratory free test, you can send samples to us, and we can test it for you.
·Unbeatable prices, we are constantly trying to find way to reduce our production costs and give you most favourable price!
·Strong brand awareness, our company is gradually building our brand, for which we will seriously treat every customer, and ensure the quality of each product.

FAQ 1. How can we choose the machine?
Please contact our sales, provide products and your requirements of them, we will give you solution with suitable machine and offer the most favourable quotation to you accordingly.
2. What is the leading time?
Regular machine can be delivered within 20-25 days. For customized machines, it need be evaluated depend on the project.
3.How long is the warranty period?
Whole machine 1 year. In warranty period, the new parts which are free will be sent to you to replace the broken ones.
4. What are the payment terms?
T/T, L/C, Western Union, or 100% L/C at sight. T/T 30% as deposit, and 70% before delivery. We will show you the photos and videos of the products and packages before you pay the balance.
5. Is the updated production process information available?
After order is confirmed, the updated production details such as products photos and videos will be available for you.The machine should be delivered after we test it and confirm its operation with you.
6. What kind of transportation we can provide?
Sea shipping, air transportation and international express.
We solemnly promise: equipment and material contact parts are 304 stainless steel material or food grade plastic, in line with the health requirements.
