Animal Feed Crush Grinder Machine for Sale

Product Description

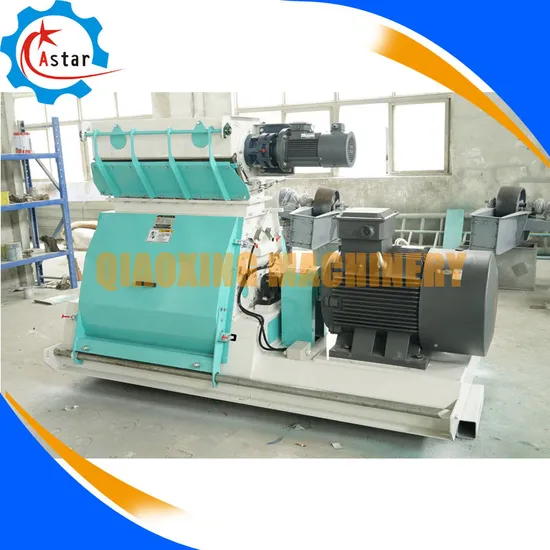

A Series Animal Feed Crush Grinder Machine For Sale
All our Hammer Mill Models :

Name	Model	Power(KW)	Capacity(T/H)
Hammer Mill	AST-ZW36A	22	1-3
	AST-ZW40A	37	3-5
	AST-ZW29C	55	6
	AST-ZW29C	75	8
	AST-ZW38C	90	10
	AST-ZW38C	110	12
	AST-ZW50C	132	16
	AST-ZW60C	160	18
	AST-ZW80C	185	20
	AST-ZW80C	200	25
	AST-ZW100C	220	28
	AST-ZW100C	250	32
Hammer Mill	AST-ZW60B	55	2
	AST-ZW60B	75	3.5
	AST-ZW80B	90	5
	AST-ZW80B	110	7
	AST-ZW100B	132	9
	AST-ZW120B	160	15

1. AST-ZW-A series Cutting Machine For Animal Feed Making From China charactaristics :
(1) It is universal type product. With stable performance . it is widely used in small and medium size feed and food processing industries for raw materials grinding .
(2) The design of overall base is high in structural strength and beautiful in appearance.
(3) Direct transmission is adopted. The reasonable arrangement of hammers and clearance between hammers and screens make sure the final products are in uniform fineness .
(4) Multi-grinding chambers are assembled in this machine. The secondary grinding chamber is cast ironing, which has high abrasive resistance .
(5) The bearing imported is with high quality , when working, it has low temperature rising. And it is equipped with the temperature indicator that can show the working condition. The bearing pedestal is SKF brand from Sweden .
(6) Various screen sieve size are selectable. Quick-starting type door opening machinery and frame-type screen pressing mechanism are adopted. Which can make the screen fixed solidly and fast to change the new screen. In this way, this design is easy to operate and convenient to maintenance .
(7) The tool bit of the hammer is spray welding with carbon tungsten alloy, which has long lifetime .
2. A series Cutting Machine For Animal Feed Making From China Technical Parameters :

Model specification	AST-ZW36A	AST-ZW40A
Rotor diameter ( mm)	560	560
Pulverizing room width (mm)	360	400
Spindle speed ( RPM)	2980	2980
Hammer Linear speed ( RPM)	87	87
Hammers quantity ( PCS)	48	56
Main power( kw)	22	37
Normal Air Suction volume(cubic meters/minute)	25	45
Output (t/h)	3-5	5-7

Any more information you need A Series Cutting Machine For Animal Feed Making From China , please feel free to contact with us.

Mr. Jason
Chongqing Qiaoxing Machinery & Equipment Company
Website: http://qiaoxingmachinery.en.made-in-china.com
Add: Room 6088, Building 4th, No. 319 of Haier Road in Jiangbei District, Chongqing Municipality, Chongqing, China
Mobile:0086-15178920906
