5gallon Bottle Blower Machine Barrel Making
| US$14,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GMS-20L
Raw Material
PET
Making Method of Parison
Stretch Blow
Automation
Non-Automatic
Computerized
Non-Computerized
After-sales Service
Online/Spare
Max Size
20L
Cavity
1
Cylinder
Airtac
Auto
Semi-Auto
Transport Package
Wooden Case
Specification
90-120pcs/hour
Trademark
GM
Origin
China
HS Code
8477301000
Production Capacity
50sets/Year
Product Description
description of 5gallon PETsemi-auto blowing machine for mineral drinking water

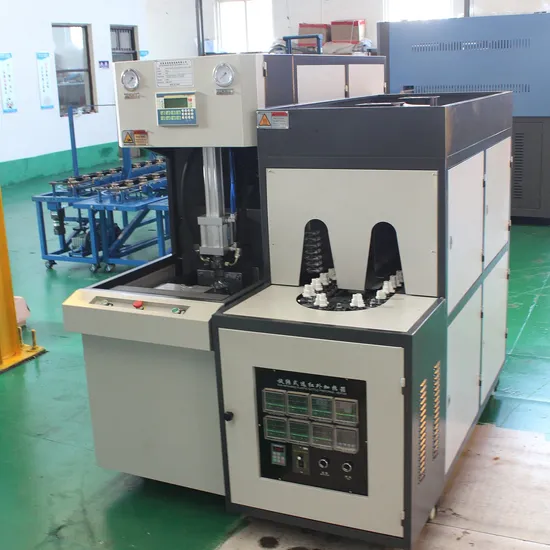

PET blow moulding machine for large PET bottles is specially designed to produce 5-gallon PET container and 25L wide mouth jar. Its max output is up to 120 BPH for 5-gallon bottle and even could reach 120 bottles per hour for the one way used thin wall 5 gallon bottles.
PET blow moulding machine consists of main unit and rotary infrared heater. The ordinary quartz lamp cannot heat preform ideally because the preform wall is excessively thick. The infrared heater with high penetrative force can heat the inside and outside of preform simultaneously and keep preform in even heating, therefore high shaping quality.
Main parameters
| Item | Parameters | Remark |
| Max size | 20L | 1cavity |
| Theory capacity | 80PCS/H | 18.9L |
| Heating power | 34kw | 380V 50HZ |
| Blowing pressure | <4.0Mpa | Action pressure ≤0.8 Mpa |
| Shift Stroke | 340mm | max |
| Temperature segments | 14sets | Intelligent ZKD digital voltage regulator |
| Main machine size | 2200×700×2250 | |
| weight | 1500kg | |
| Thickness of moulds | 300-400 mm | |
| Heating type | Far-infrared | Rotate heating system |
