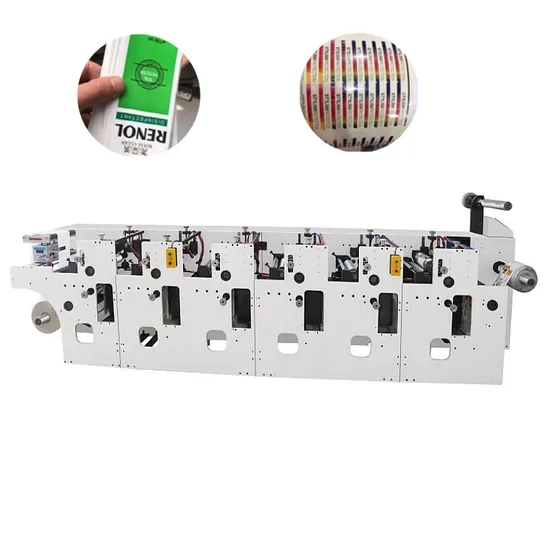

Narrow Web Adhesive Paper PP PVC PE Pet BOPP OPP Film Labels IR UV 3/4 /5/6/7/8 Colors Flexo/Flexographic Printing Machine Flexographic Printer

Product Description

Product Description
Product Parameters
Feature:
1. From the discharge to the receipt of the short distance.
2. The ceramic stick is equipped with a scraper, which is printed and moist, and has a clear color.
3. Repeatedly printing the circumference of 190.5-635MM, filling the blank of the cascading flexographic printing machine, the slanting trademark printing machine, the petal printing machine and the printing length.
4. The use of gear color to solve the 360-degree coloring device gap, assembly, wear, etc., affecting the color accuracy and printing instability.
5. From left to right: coil feeding, printing, automatic infrared drying (optional UV curing, LDE curing), (optional: film cutting, laminating, coding, slitting) winding a coherent completion .
6. Water-based ink (UV ink) printing, pollution-free, environmentally friendly, printing speed varies according to the network cable, the speed is also different, the fastest speed of printing labels is 90 meters per minute.
7. Printing bills, labels, cardboard, high-grade stickers, clothing tags, etc.
8. Printing materials: paper 20~250g/m2 self-adhesive soft coil and other materials.
9. Process:
1 discharging, 2 automatic constant tension, 3 scraper, 4 printing unit, 5 traction, 6 automatic constant tension, 7 center receiving
Main Parameters:

Printed form	Flexo
Printing speed	10m/min-100m/min
Mechanical speed	10m/min-120m/min
Maximum width of substrate	320mm
Printing width	50-320mm
Printing circumference	190.5-635mm
Plate thickness	1.7/2.28mm(special advance notice)
Anilox roller specifications	Φ85*250*6
Aluminum guide roller specifications	Φ70*250
Printing bottom roller	Φ85*250
Unwinding maximum diameter	Φ600 mm
Maximum winding diameter	Φ600 mm
Oven maximum temperature	80ºC
Substrate core diameter	74mm
Total power of the whole machine	16kw
Drying heat source	electric heating
Machine weight	3500KG
Dimensions	5500(L) x 1000 (W) x 1200(H)mm
Body color	White (special advance notice)

SUITABLE MATERIAL
Kraft paper	40-350g/		woven	15-120g/
Single-sided coated paper	30-350g/		Weave fabric	15-500g/
Copy paper	15-350g/		NO woven	15-150g/
Firecrackers and paper	40-350g/
Paper money and incense	25-350g/		PVC	10-120g/
Silicone paper	50-350g/		OPP	10-120g/
Coated paper	30-350g/		PE	10-120g/
Dust-free paper	25-350g/		PET	10-120g/
Release paper	40-350g/		CPP	10-120g/
Composite paper	30-350g/
Thermal sensitive paper	30-150g/

touch screen Control panel
Circular cutting device
printing Group
ceramic roller and cylinder Circular knife die cutting device
oven group cold laminationg
epc device printed sample
Company Profile

Packaging & Shipping
Certifications
FAQ
Q: Are you manufacturer or trading company?
A:We are the manufacturer and have our own workers and factories.
Q:How long is the warranty period?
A: All of our products have 2 year warranty and whole life maintance
Q: What's the main market of your company?
A: We have customers all over the world
Q: What's your delivery time and payment Terms?
A: Normally,it need about 10-30 days.The exact time depends on your quantity.The payment terms always 30% deposits,70% to be paid before shipment.
Q: What package do you use for the product?
A:Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost.
Q: Does your factory provide installation service?
A:Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 120-150USD/Day per person since the day start out until the day arriving at factory.
Q: Can we visit your machine operation in your factory?
A: Welcome to you go to our factory to see the machine operation.
Q: Where's your factory located? How can we visit there?
A: We are in Zhixin industry Zone, Ruian City,Zhejiang province,China.
You can by air to Wenzhou airport and by High-speed train to Rui'an Station
